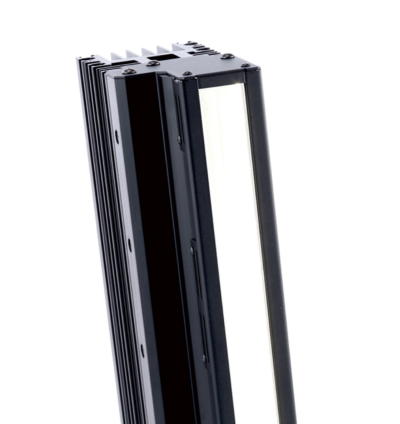

The LNLP-400SW is a high-intensity white LED line light designed for wide-area inspection and line scan applications. With a compact housing and a 400 × 21 mm light-emitting surface, it delivers uniform, high-brightness illumination ideal for detecting fine defects and structural variations across large substrates.
TECHNICAL INFORMATION:
The LNLP-400SW is a high-performance white LED line light optimized for extended line scan imaging applications. With a correlated color temperature of 5,800 K (typical), it ensures sharp contrast and reliable surface detail capture over wide inspection areas.
- LED color: White
- Correlated color temperature: 5,800 K typ.
- Dimensions: W 461 mm x D 60.2 mm x H 126mm
- Power consumption: 144 W max.
- Case material: Aluminum alloy, Steel sheet, Resin
- Input connector: Metal connector PRC04-21A26S-37M (Tajimi Electronics co.,ltd)
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Low risk)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 4600 g max.
- Accessories: Instruction Guide, FG line (2 m), M4 mounting screw
Quick Info for the LNLP-400SW
| Lighting Type: | Line Lights |
|---|---|
| Manufacturer: | CCS Inc |
