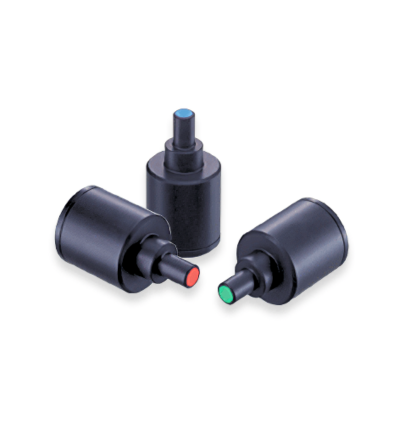

The LV-27 is a compact LED spot light engineered for precision applications requiring focused, coaxial illumination. With an outer diameter of 27 mm, a tip diameter of 8 mm, and a light-emitting surface of just 6 mm, it is ideal for integration into telecentric and macro lens systems. Its slim 50 mm length allows for easy installation in tight spaces, making it well-suited for inspection tasks involving fine features or confined optical paths. Designed for efficiency and clarity, the LV-27 delivers reliable, low-power performance for high-precision machine vision setups.
TECHNICAL INFORMATION:
The LV-27 is an LED spot light designed to deliver concentrated, stable illumination with minimal energy consumption. Emitting light at a typical peak wavelength of 630 nm, it supports 24VDC operation while consuming just 0.8 W max—making it ideal for energy-conscious machine vision environments.
LED Color: Variety
Peak Wavelength: 630 nm (typical)
Dimensions: Ø27 mm (outer), Ø8 mm (tip), Length: 50 mm
Electrical Specifications
Input Voltage: 24 VDC
Power Consumption: 0.8 W (max.)
Polarity & Signal: Pin 1: (+), Pin 2: NC, Pin 3: (−)
Cable Length: 300 mm
Input Connector: SMR-03V-B
Construction & Materials
Case Material: Aluminum alloy
Cooling Method: Natural air cooling
Weight: 40 g max.
Environmental Specifications
Operating Temperature & Humidity: 0 to 40°C; 20 to 85% RH (non-condensing)
Storage Temperature & Humidity: -20 to 60°C; 20 to 85% RH (non-condensing)
Certifications & Standards
Compliance: CE, UKCA, RoHS
Photobiological Safety: IEC 62471 (Exempt Group)
Included Accessories
Handling Precautions documentation
With its lightweight build and precise beam output, the LV-27 is engineered to meet the demands of embedded optical systems without sacrificing illumination quality.
Quick Info for the LV-27
| Lighting Type: | Spot Lights |
|---|---|
| Manufacturer: | CCS Inc |
