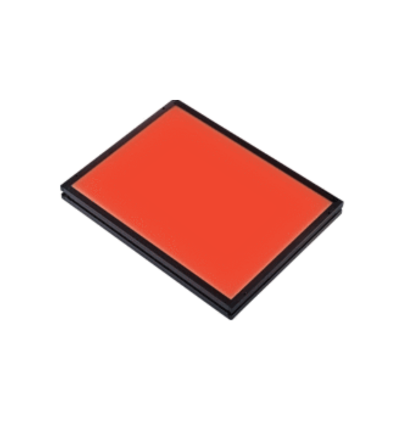

The TH2-160X120-PM is a LED panel light engineered for high-directivity illumination over wide target areas. With a light-emitting surface measuring 160 × 120 mm, it delivers uniform brightness ideal for imaging large workpieces or inspecting multiple components simultaneously.
blue,red,white
TECHNICAL INFORMATION:
The TH2-160X120-PM is a high-directivity LED panel light designed for uniform illumination across large inspection areas. Its expansive coverage and stable output make it suitable for high-speed imaging, dimension checks, and precise surface inspections in industrial applications.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 172 mm x D 132 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 34 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 390 g max.
- Accessories: User Manual
Quick Info for the TH2-160X120-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
