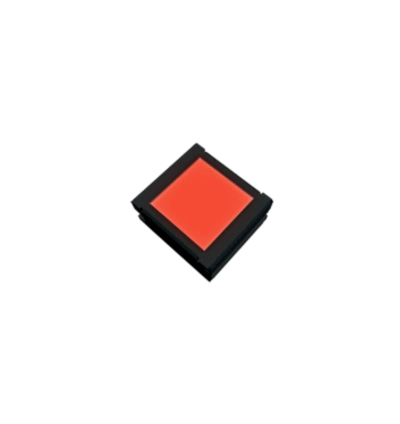

The TH2-27X27-PM is a compact LED light designed for high-speed and precision inspection environments. With a light-emitting surface of 27 × 27 mm and overall dimensions of 35 × 39 × 18 mm (W × D × H), this high-directivity model concentrates light with minimal dispersion—ideal for enhancing contrast on reflective or detailed surfaces.
blue,red,white
TECHNICAL INFORMATION:
The TH2-27X27-PM is a high-directivity LED light designed for precision inspection tasks in high-speed production environments. With its compact footprint and focused illumination area, it ensures uniform lighting intensity and enhanced contrast for small-part detection and surface inspection.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 35 mm x D 39 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 2.5 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 40 g max.
- Accessories: User Manual
Quick Info for the TH2-27X27-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
