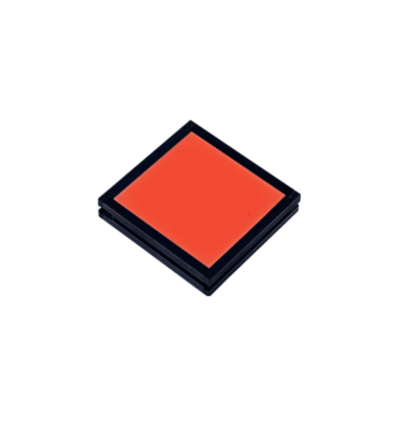

The TH2-63X60-PM is a high-directivity LED light designed to deliver focused, high-intensity illumination across a broad rectangular area. With a compact footprint measuring 75 x 72 x 18 mm and a large 63 x 60 mm light-emitting surface, this unit is well-suited for precision inspection in high-speed production environments.
blue,red,white
TECHNICAL INFORMATION:
The TH2-63X60-PM is a high-directivity LED light designed for machine vision applications requiring uniform, concentrated illumination over a wide rectangular area. Its robust build and optimized optical output make it ideal for fast-paced inspection tasks such as mark detection, OCR, and surface defect analysis.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 75 mm x D 72 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 9.9 W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 120 g max.
- Accessories: User Manual
Quick Info for the TH2-63X60-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
