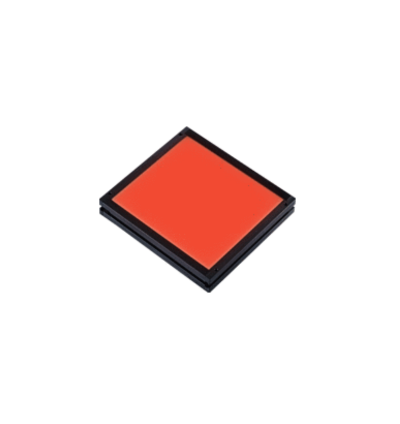

The TH2-83X75-PM is a LED light unit engineered for applications requiring high-directivity illumination over broad inspection areas. Measuring 95 x 87 x 18 mm with an 83 x 75 mm light-emitting surface, this unit delivers focused, high-intensity lighting that enhances edge contrast and minimizes glare.
blue,red,white
TECHNICAL INFORMATION:
The TH2-83X75-PM is a high-directivity LED light unit optimized for wide-area, high-speed machine vision inspections. With its expansive light-emitting surface and compact housing, it delivers precise illumination for applications that demand uniform intensity across larger workpieces or inspection zones.
- LED color: Red, White, Blue
- Peak wavelength: 635 nm typ.
- Dimensions: W 95 mm x D 87 mm x H 18 mm
- Input voltage: 24VDC
- Power consumption: 15W max.
- Polarity & signal: 1: (+), 2: NC, 3: (-)
- Cable length: 300 mm
- Case material: Aluminum alloy, resin
- Input connector: SMR-03V-B
- Conformed standards: CE, UKCA, RoHS, IEC 62471(Exempt)
- Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method: Natural air cooling
- Weight: 170 g max.
- Accessories: User Manual
Quick Info for the TH2-83X75-PM
| Lighting Type: | Flat Lights |
|---|---|
| Manufacturer: | CCS Inc |
