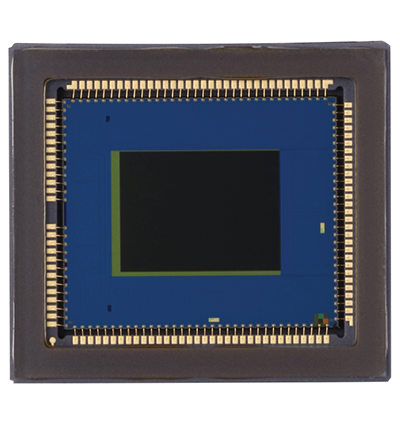

Canon 2.8 MP HDR CMOS Sensor

The Canon LI7060 is a 2.8 MP CMOS sensor engineered for high dynamic range imaging, featuring an advanced HDR drive mode that achieves up to 120 dB dynamic range with low noise. Even in standard drive mode, the sensor delivers a 75 dB dynamic range, enabling effective image capture in scenes with extreme contrast between light and dark areas.

Designed with a 1/2.32" (7.75 mm diagonal) format, the LI7060 offers a resolution of 1936 x 1456 pixels with 3.2 µm x 3.2 µm pixel size and supports frame rates up to 60 fps (30 fps in HDR mode). It integrates seamlessly with MIPI CSI-2 interfaces, making it well-suited for a wide range of consumer and industrial imaging applications.

TECHNICAL INFORMATION:

Technical Specifications – Canon LI7060 CMOS Sensor

• Filter Type: RGB

• Sensor Format: 1/2.32" (7.75 mm diagonal)

• Effective Resolution: 1936 (H) × 1456 (V)

• Pixel Size: 3.2 µm × 3.2 µm

• Shutter Type: Rolling shutter

• Dynamic Range (HDR Mode): Up to 120 dB

• Dynamic Range (Standard Mode): 75 dB

• Maximum Frame Rate (HDR): 30 fps

• Maximum Frame Rate (Standard): 60 fps

• Operating Temperature Range: -40°C to +105°C (-40°F to +221°F)

• Output Interface: MIPI CSI-2
