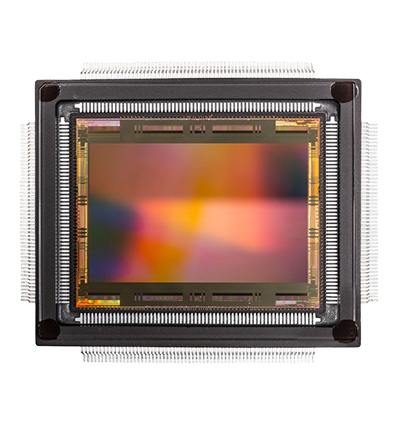

Canon 2U250MRXS CMOS Sensor
Get a Quote for the Canon 2U250MRXS CMOS Sensor
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
2U250MRXSAAC: Color
2U250MRXSAAM: Monochrome
250 MP Ultra High Resolution CMOS Sensor
The 2U250MRXSAA is an ultra high resolution CMOS sensor with 19568 x 12588 effective pixels. It has a size equivalent to APS-H, a square pixel arrangement of 1.5μm x 1.5μm and is available with either an RGB color filter array or in a Monochrome configuration. The 2U250MRXSAA CMOS sensor captures stunning detail 125 times greater than Full High Definition resolution and 30 times that of 4K Ultra High Definition resolution. This sensor also supports features such as single ROI windowing in both the horizontal and vertical dimensions, faster frame rates when reducing resolution, and vertical intermittent reading.
Applications
- 3D Metrology
- Aerial Mapping
- Aeronautic Imaging
- Digital Archiving
- Document Scanning
- Flat Panel Display Inspection
- Intelligent Traffic Systems (ITS)
- Wide Area Surveillance
- Machine Vision
- Medical Imaging
- Packaging & Inspection
- Scientific Research
- Security
Download Product PDF:
TECHNICAL INFORMATION:
| 2U250MRXSAAC | 2U250MRXSAAM | |
| Filter Type | RGB | Monochrome |
| Sensitivity | 4,100 e/lx/sec (TBD) | TBD |
| Sensor Size | 29.35mm x 18.88mm | |
| Number of Effective Pixels | 19568h x 12588v | |
| Pixel Size | 1.5μm x 1.5μm | |
| Scan Type | Progressive Scan | |
| Shutter | Rolling Shutter | |
| Maximum Frame Rate (All Pixels) | 5 fps | |
| Region of Interest (ROI) Capability | 1 Region Supported (Vertical & Horizontal) | |
| Package Type | 228 pin Ceramic QFP | |
| Saturation | 6000 e @0dB (TBD) | |
| Dark Random Noise (Room Temp) | 3.1 e rms @18dB (TBD) | |
| Dark Current | 6.0 e/sec @60°C (TBD) | |
| Drive Frequency | 81MHz | |
| Output Channels | Data 16 Lanes, Clock 4 lanes | |
| Output Format (LVDS / SLVS) | 810 Mbps @ 10 bit (TBD) 972 Mbps @ 12 bit (TBD) | |
| Analog Gain | 0dB, 6dB, 12dB, 18dB | |
| Power Consumption | (TBD) | |
| Power Supply Voltage | 1.2V, 3.3V, and 3.5V (TBD) | |
| Package Size (External Electrodes Not Included) | 43.7mm x 36.4mm x 3.97mm (TBD) | |
| FPS : | 5 fps |
|---|---|
| Manufacturer: | Canon |
| Pixel Size : | 1.5µm x 1.5µm |
| Resolution : | 250MP |
| Scan: | Area Scan |
| Shutter : | Rolling |
| Signal : | RGB |
| FPS : | 5 fps |
|---|---|
| Manufacturer: | Canon |
| Pixel Size : | 1.5µm x 1.5µm |
| Resolution : | 250MP |
| Scan: | Area Scan |
| Shutter : | Rolling |
| Signal : | Monochrome |
