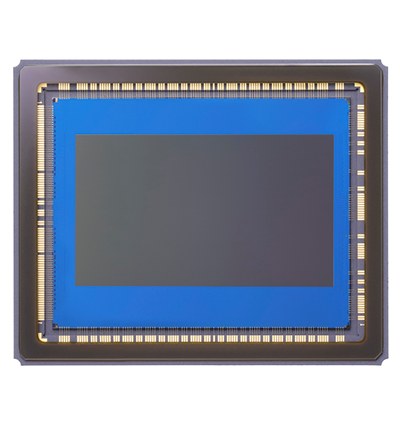

Canon LI5030SA CMOS Sensor

The Canon LI5030SA is a high-performance 35mm full-frame CMOS sensor offering 19 Megapixels of resolution (5688 × 3334), designed for applications requiring simultaneous exposure across the entire image. Unlike traditional rolling shutters, the LI5030SA features a global shutter architecture, enabling precise capture of high-speed subjects without distortion.

With large 6.4 µm pixels, the sensor delivers exceptional sensitivity and image quality. It supports 12-bit output at up to 57.99 fps via 24-channel digital output, making it ideal for demanding imaging environments.

The LI5030SA series includes:

• LI5030SAC – Color (RGB)

• LI5030SAI – RGBIR (Infrared sensitivity)

• LI5030SAM – Monochrome

• LI5030SAN – Bare (no microlens or color filter)

The LI5030SAN variant is optimized for scientific and medical research, including applications such as fiber-coupled imaging and Transmission Electron Microscopy (TEM), thanks to its removable lid glass and unobstructed sensor surface.

Key Advantages:

• High resolution + high sensitivity + global shutter

• Pixel size: 6.4 µm

• Versatile output options with multiple filter configurations

• Suitable for microscopy, factory automation, drone imaging, traffic surveillance, and more

TECHNICAL INFORMATION:

Technical Specifications – Canon LI5030SAC CMOS Sensor

• Filter Type: Color (RGB)

• Optical Format: Full-frame 35mm equivalent (42.12 mm × 32.64 mm)

• Effective Resolution: 5688 (H) × 3334 (V)

• Pixel Size: 6.4 µm × 6.4 µm

• Output Interface: LVDS, 720 Mbps @ 12-bit

• Recommended Clock Frequency: 60 MHz

• Analog Gain Settings: 0 dB, 6 dB, 12 dB, 18 dB

• Saturation (Typical): 20,000 e?

• Sensitivity (Typical, Green): 81,000 e?/lx/sec

• Dark Random Noise (Typical): 1.8 e? rms @ 18 dB gain

• Dark Current (Typical): 28 e?/sec @ 18 dB gain, 60°C

• Power Consumption (Typical): 2.4 W @ 57.99 fps (full resolution)
