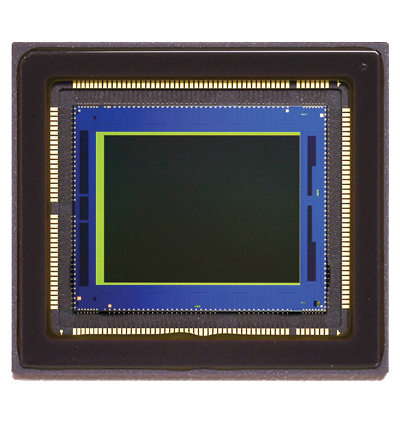

Canon LI7030SA CMOS Sensor

The Canon LI7030SA is a 1-inch CMOS solid-state image sensor featuring a 3.2 µm square pixel layout and 12 Megapixels of effective resolution. Designed for high-speed, high-quality imaging, it supports 4K3K video at 24 fps (12-bit), 4K2K at 60 fps (10-bit), and HD720p at 120 fps (10-bit). Built on Canon’s low-noise technology platform, the LI7030SA delivers excellent dynamic range and outstanding performance in low-light conditions—making it ideal for applications requiring both speed and image fidelity.

TECHNICAL INFORMATION:

Technical Specifications – Canon LI7030SA CMOS Sensor

• Filter Type: RGB (on-chip color filter)

• Optical Format: 1" equivalent (12.8 mm × 9.6 mm)

• Effective Pixel Count: 4004 (H) × 3000 (V)

• Pixel Size: 3.2 µm × 3.2 µm

• Output Interface: LVDS, up to 648 Mbps

• Analog Gain Settings: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB

• Saturation Capacity: 25,000 e?

• Dark Random Noise: 2.6 e? rms (typ.) @ 4K3K, 24 fps, 12-bit

• Dark Current: 17 e?/sec @ 60°C, 4K3K readout, 24 fps, 12-bit

• Power Consumption: 540 mW (typ.) @ 4K2K, 60 fps, 10-bit

• Power Supply Voltage: 3.3 V and 1.8 V
