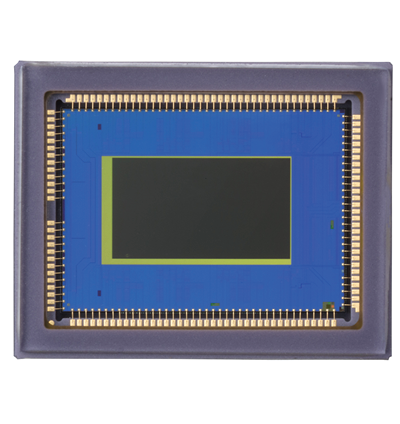

Canon LI7050SA CMOS Sensor

The Canon LI7050SA is a high-performance 2 MP CMOS sensor designed for applications requiring excellent image quality in both high- and low-light conditions. Featuring a square 4.1 µm × 4.1 µm pixel architecture and a 1/1.8" optical format, it delivers outstanding sensitivity and dynamic range in a compact package—ideal for surveillance, security, and machine vision.

Equipped with a rolling shutter and a 7.9 mm × 4.5 mm active sensor area, the LI7050SA supports up to 120 dB HDR and a maximum frame rate of 60 fps. With RGB filter support and sensitivity rated at 54,000 e/lx/sec, this sensor combines affordability with Canon’s advanced imaging technology to meet the demands of modern imaging systems.

TECHNICAL INFORMATION:

Technical Specifications – Canon LI7050SA CMOS Sensor

• Resolution: 2.12 Megapixels

• Effective Pixel Count: 1936 (H) × 1096 (V)

• Pixel Pitch: 4.1 µm

• Sensor Dimensions: 7.9 mm × 4.5 mm

• Shutter Type: Rolling shutter

• Dark Random Noise: 1.1 e? rms @ room temperature

• Maximum Frame Rate: 60 fps (standard), 30 fps (HDR mode)

• Color Filter: RGB

• Sensitivity (Green): 54,000 e?/lx/sec
