Canon 120MXS 120 MP Sensor Evaluation Kit

Need Help Finding the Best Sensor for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Canon 120MXS 120 MP Sensor Evaluation Kit

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Assess sensor performance for your applications with the Canon 120MXS 120 MP CMOS Sensor Evaluation Kit.

Lens AvailableThe Evaluation Kit includes a camera with a pre-installed Monochrome, RGB or RGB-NIR (near-infrared) Canon 120MXS 120 MP sensor of your choice with raw data serial output via a USB 3.1 (Gen 1) interface. Featuring an open architecture design, the kit gives developers the option to embed processing and software with the on-board ARM and FPGA*.

The Canon 120MXS 120 MP CMOS Sensor Evaluation Kit includes:

  • Evaluation camera with pre-installed sensor (mono, RGB, or RGB-NIR )
  • Accessory package for out-of-the-box operation (quick start guide, power supply, all necessary cables)
  • Embedded software to setup the sensor, acquire image data, and communicate over USB 3.1 interface with any USB 3 compliant UI
  • PC-based UI application available for download to communicate with the camera
  • Sensor board design files source code*
  • VHDL code for the FPGA*

*Source code and VHDL code only available upon request with an NDA
NOTE: A Lens is not included in this kit.

Speak with a Phase 1 Technology imaging expert about suitable lens options that will help you to effectively evaluate sensor performance for your applications.


Sensor Specs
Color Filter RGB RGB-NIR Monochrome
Sensitivity (e/lx/sec) 10,000 10,000 20,000
Resolution 122 megapixels
Effective Pixels 13272h x 9176v
Sensor Size APS-H (29.22mm x 20.20mm)
Pixel Size 2.2µm x 2.2µm
Maximum Frame Rate (All Pixels) 9.4 fps
Shutter Type Rolling
Dark Random Noise 2.3e rms @ gain x8, Room Temperature
Evaluation Kit Camera Specs
FPGA Intel Arria 10
FPGA Processor Dual Core A9 ARM
Interface USB 3.1 Gen 1
AIA Vision Protocol
Programmable General Purpose I/O 4 External FPGA GPIO Pins
3 Opto-Isolated Input Pins
Use as trigger / exposure inputs
Bit Rate/Maximum Frame Rate 8-Bit: 2 fps
12-Bit: 1.3 fps
ISP Functions Region of Interest
Exposure Control
Framerate Control
Bad Pixel Replacement
Trigger Mode External
Debug / Registry  Setting Control Peek / Poke Commands
Lens Mount F-Mount
Power Input 12 VDC
Hardware / Software Requirements Windows 10 64-bit PC with USB 3.0 port available
GenTL Viewer Software (provided)
MityCAM-120MXS Camera Head (provided)
Camera Power Supply (provided)
USB 3.0 Cable (provided)
GPIO/Serial Cable (provided)


Request a Quote

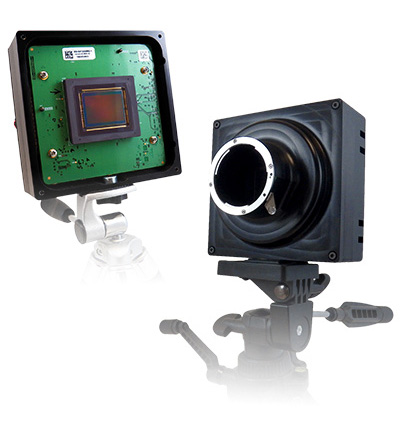

Product image of Canon 120MXS 120 MP Sensor Evaluation Kit
Product Photos
Product image of  Canon 120MXS 120 MP Sensor Evaluation Kit
Quick Info for the Canon 120MXS
Manufacturer: Canon
Scan: Evaluation Board
