Assess sensor performance for your applications with the Canon 35MMFHDXS High Sensitivity Sensor Evaluation Kit

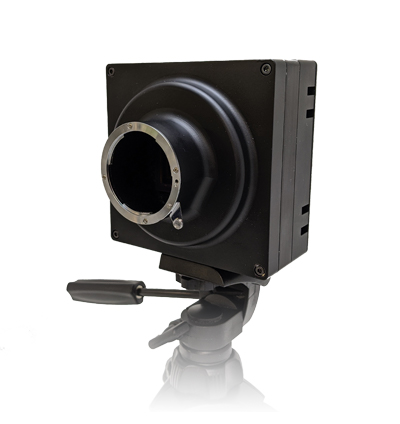

The Canon 35MMFHDXS Evaluation Kit allows integrators and end users to assess sensor performance and provides assets for image system designers to help accelerate development time. The Evaluation Kit features a camera with a pre-installed 35MMFHDXS_A high sensitivity CMOS sensor with raw data serial output via a USB 3.1 (Gen 1) interface. The evaluation kit has an open architecture design and gives developers the option to embed processing and software with the on-board ARM and FPGA*.
The 35MMFHDXS Evaluation Kit includes:
- Evaluation camera with pre-installed sensor
- Accessory package for out-of-the-box operation (quick start guide, power supply, all necessary cables)
- Embedded software to setup the sensor, acquire image data, and communicate over USB 3.1 interface with any USB 3 compliant UI
- PC-based UI application available for download to communicate with the camera
- Sensor board design files source code*
- VHDL code for the FPGA*
*Source code and VHDL code only available upon request with an NDA
NOTE: A Lens is not included in this kit.
Speak with a Phase 1 Technology imaging expert about suitable lens options that will help you to effectively evaluate sensor performance for your applications.
TECHNICAL INFORMATION:
| 35MMFHDXS_A Sensor Specs | |||
|---|---|---|---|
| Color Filter | RGB | Monochrome | |
| Sensitivity (e/lx/sec) | 1,100,000 | 2,100,000 | |
| Resolution | 2.7 megapixels | ||
| Effective Pixels | 2160h x 1280v | ||
| Sensor Size | Full Frame (41.04mm x 24.32mm) | ||
| Pixel Size | 19µm x 19µm | ||
| Maximum Frame Rate (All Pixels) | 98 fps | ||
| Shutter Type | Rolling | ||
| Dark Random Noise | 2.2e rms @ gain x16, Room Temperature | ||
| Evaluation Kit Camera Specs | |||
| FPGA | Intel Arria 10 | ||
| FPGA Processor | Dual Core A9 ARM | ||
| Interface | USB 3.1 Gen 1 | ||
| AIA Vision Protocol | |||
| Programmable General Purpose I/O | 4 External FPGA GPIO Pins | ||
| 3 Opto-Isolated Input Pins | |||
| Use as trigger / exposure inputs | |||
| Bit Rate/Maximum Frame Rate | 8-Bit: 98 fps | ||
| 12-Bit: 60 fps | |||
| 16-Bit: 48 fps | |||
| ISP Functions | Region of Interest | ||
| Exposure Control | |||
| Framerate Control | |||
| Bad Pixel Replacement | |||
| Trigger Mode | External | ||
| Debug / Registry Setting Control | Peek / Poke Commands | ||
| Lens Mount | F-Mount | ||
| Power Input | 12 VDC | ||
| Hardware / Software Requirements | Windows 10 64 bit PC with USB 3.0 port available GenTL Viewer Software (provided) MityCAM-35MMFHDXS Camera Head (provided) Camera Power Supply (provided) USB 3.0 Cable (provided) GPIO/Serial Cable (provided) |
||
| Manufacturer: | Canon |
|---|---|
| Scan: | Evaluation Board |
