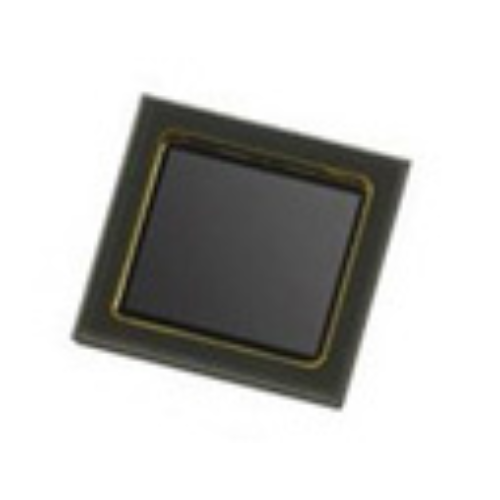

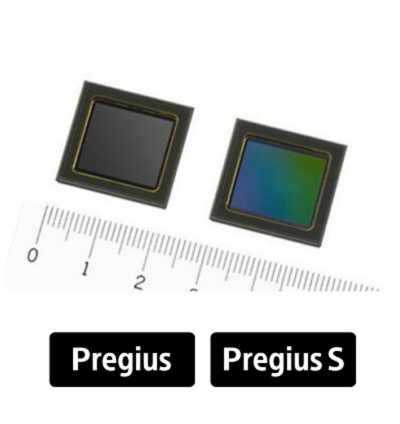

Sony IMX 568AAQJ Sensor

Diagonal 8.8 mm (Type 1/1.8) CMOS solid-state Image Sensor with Square Pixel for Color Cameras

The IMX568-AAQJ is a diagonal 8.8 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 5.10 M effective pixels. This chip features a global shutter with variable charge-integration time. This chip operates with analog 3.3 V, 2.9 V, digital 1.1 V, and interface 1.8 V quadruple power supply. High sensitivity and low dark current characteristics are achieved.

(Applications: FA cameras, ITS cameras)

TECHNICAL INFORMATION:

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Global shutter function
• Input frequency 37.125 MHz / 74.25 MHz / 54 MHz
• Number of recommended recording pixels: 2448 (H) × 2048 (V) approx. 5.01 M pixels
• Readout mode
• All-pixel scan mode
• Vertical / Horizontal 1/2 Subsampling mode
• ROI mode
• Vertical / Horizontal - Normal / Inverted readout mode
• Readout rate
• Maximum frame rate in
• All-pixel scan mode: 8 bit 96.2 frame/s, 10 bit 79.1 frame/s, 12 bit 67.2 frame/s
• Pulse Output Function
• The monitor output for Exposure period
• Programmable pulse output
• 8-bit / 10-bit / 12-bit A/D converter
• CDS / PGA function
• 0 dB to 24 dB: Analog Gain (0.1 dB step)
• 24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
• I/O interface
• CSI-2 serial data output (2 Lane / 4 Lane) (1188 / 891 / 594 Mbps per ch)
• Recommended lens F number: 2.8 or more (Close side)
