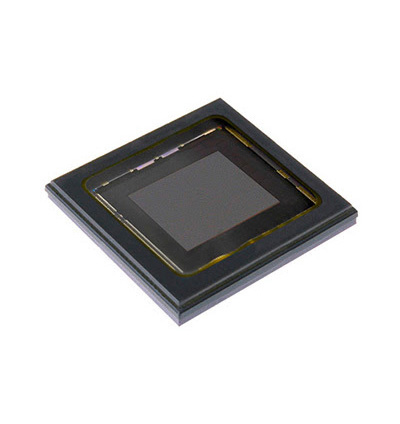

The IMX487-AAMJ-C is a diagonal 11.1 mm (Type 2/3) CMOS active pixel type solid-state image sensor with a square pixel array and 8.13 M effective pixels. This chip features a global shutter with variable charge-integration time. This chip operates with analog 3.3 V, 2.9 V, digital 1.1 V, and interface 1.8 V quadruple power supply. Regarding a waveband (200 nm to 400 nm), high sensitivity and low dark current characteristics are achieved. (Applications: FA cameras)
TECHNICAL INFORMATION:
- CMOS active pixel type dots
- UV (UltraViolet) waveband sensor (200 nm to 400 nm)
- Built-in timing adjustment circuit, H/V driver and serial communication circuit
- Global shutter function
- Input frequency 37.125 MHz / 74.25 MHz / 54 MHz
- Number of recommended recording pixels: 2840 (H) 2840 (V) approx. 8.06 M pixels
- Readout mode : All-pixel scan mode; Vertical / Horizontal 1/2 Subsampling mode; 2x2 FD binning mode; ROI mode; Vertical / Horizontal-Normal / Inverted readout mode
- Readout rate: Maximum frame rate in All-pixel scan mode: 8 bit 194.0 frame/s, 10 bit 193.6 frame/s, 12 bit 127.2 frame/s (*) At high frame rates, control so as not to exceed Tj = +100 C
- Variable-speed shutter function (resolution 1 H units)
- Pulse Output Function: The monitor output for Exposure period (TOUT0) Programmable pulse output (TOUT1 and TOUT2)
- 8-bit / 10-bit / 12-bit A/D converter
- CDS / PGA function: 0 dB to 24 dB: Analog Gain (0.1 dB step) 24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
- I/O interface: SLVS (4 ch / 8 ch switching) output; SLVS – EC (1 Lane / 2 Lane / 4 Lane / 8 lane switching) output
- Recommended lens F number: 2.8 or more (Close side)
