The Next Generation of Mapping
The SORA-CAMR4 is a revolutionary 61 MP, full-frame mapping camera solution designed specifically for high-quality drone mapping, surveying, and aerial inspections.
Introducing the SORA-CAMR4 ("SORA CAM R 4"), the next generation of mapping camera capabilities, brought to you by Phase 1 Technology. This state-of-the-art, 61-megapixel full-frame mapping camera is designed for drone professionals who demand the highest quality aerial imaging, mapping, and surveying solutions while maintaining NDAA compliance. The SORA-CAMR4's exceptional features make it the ideal choice for manufacturers, Drone integrators, and drone users alike.
With its lightweight design of just 285 grams, it allows for longer flight times and increased efficiency. The compact size of 120mm x ("by") 90mm and remote control capabilities make it adaptable to various drone configurations. Equipped with a powerful image processor, the SORA-CAMR4 offers outstanding image quality, top dynamic range, and low noise, ensuring crisp and detailed aerial images. The full-frame sensor is 2.5 times larger than an APS-C sensor, saving you over 35% flight time while maintaining the same map quality. SORA-CAMR4 supports Sony's SDK, 10 frames per second with full autofocus, and 4K video capabilities.
Moreover, it features built-in Multi-Interface hot shoe output for PPK, enhancing its integration capabilities. The mechanical sensor stabilization also known as In Body Image Stabilization has been removed to enhance performance, while the standard off-the-shelf locking Molex connector ensures durability and security. Dual media slots, both supporting UHS-II, provide easy access to data, while the industrial locking connector offers secure power and trigger connections. The SORA-CAMR4 also boasts a maximum ISO sensitivity of 100-32000 for photos and movies, ensuring optimal performance in a wide range of lighting conditions.
Elevate your aerial imaging and mapping game with the SORA-CAMR4 from Phase 1 Technology. Don't compromise on quality, performance, or compliance - choose the ultimate solution for your professional drone needs.
The SORA-CAMR4's full-frame sensor is 2.5X larger than a standard APS-C sensor. The full-frame sensor captures larger aerial images, resulting in a 35% savings in flight time yielding the same map quality and resolution.
The SORA-CAMR4 features dual UHS-ll media slots for easy access, an industrial locking connection for power and trigger, and APK integration via a hot shoe signal built directly into the Molex connector. Its lightweight design of 285g will result in longer fly times, maximizing your mapping experience.
Don't compromise on quality, performance, or compliance. Choose the ultimate solution for your professional drone needs.
Elevate your aerial imaging and mapping game with the SORA-CAMR4.
- Light Weight (300g)
- Compact Size (100mm x50mm)
- Remote Control
- Full Sony SDK Support
- 61 megapixel full-frame CMOS sensor
- Bionz X™ image processor
- Built-in Multi-Interface hot shoe output for PPK
- Top dynamic range and very low noise
- 10 frames per second with full autofocus
- 4K Video
- Removed mechanical sensor stabilization
- Standard off the shelf locking Molex connector
- Maximum Photo Resolution and Frame Rates
- 61.0 Mp Up To 10 Fps
- Maximum Movie Resolution and Frame Rates
- 4k / 30p Hd / 120p
- Maximum Iso Sensitivity
- Photo: Iso 100-32000 (Expandable: Iso 50-102400)
- Movie: Iso 100-32000

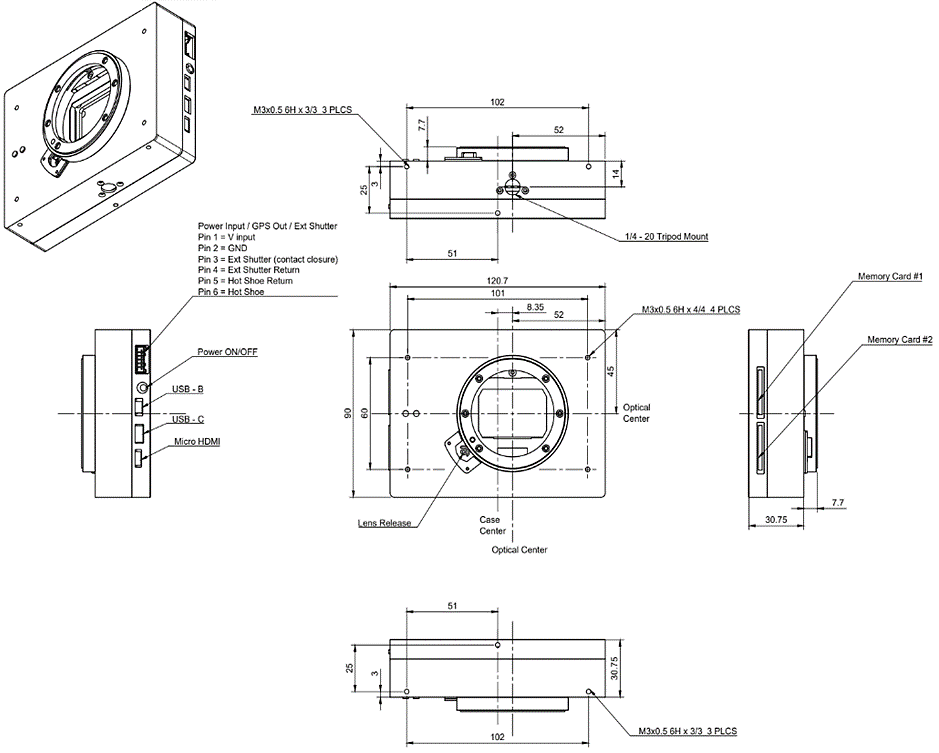

Size and Mounting & Connections
Camera Remote SDK
Fully compatible with Sony's SDK, gives software developers the tools they need to seamlessly integrate cameras into their organization's workflow, across a wide spectrum of applications and solutions. With this devkit, developers can create ultra-customized software applications that will operate these cameras remotely from a host computer running Windows®, macOS®, or Linux®. Change the camera's settings, hit the shutter release, or use live view monitoring - all from a remote location. The possibilities are endless.
