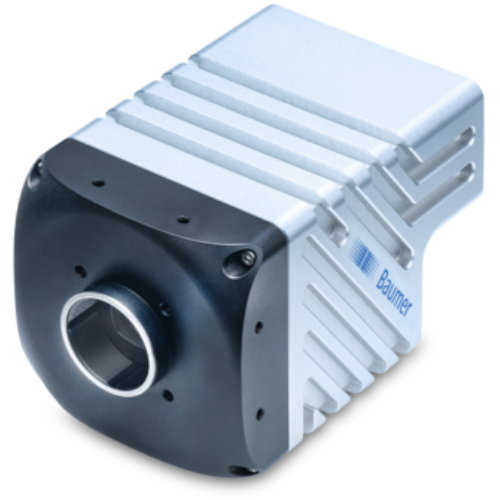

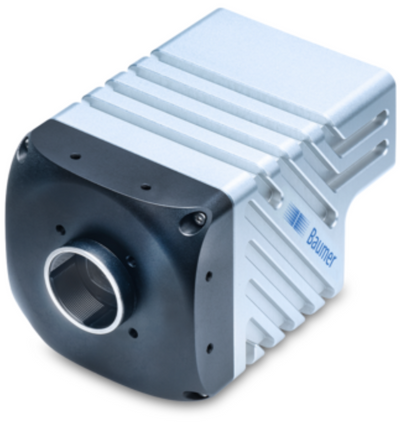

Baumer VAX-32M.I.NVN Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Baumer VAX-32M.I.NVN
Please fill out the form below to request a quote. Fields marked with * are required.
Powerful implementation of AI applications
- NVIDIA Jetson Nano or Xavier NX modules with special AI cores and graphics processors
- Cutting-edge Sony CMOS sensors
Easy, space-saving, and cost-effective integration
- A single component for image capturing and image processing
- No need for a separate PC and associated cables for image processing
Simple, flexible, and secure use of algorithms
- Free choice of programming language thanks to Linux
- Fully flexible use of various image processing libraries and application programming interfaces (APIs)
Reliable, quick and standard-compliant integration
- Compatible with GenICam
- M12 Ethernet and RS232 connections

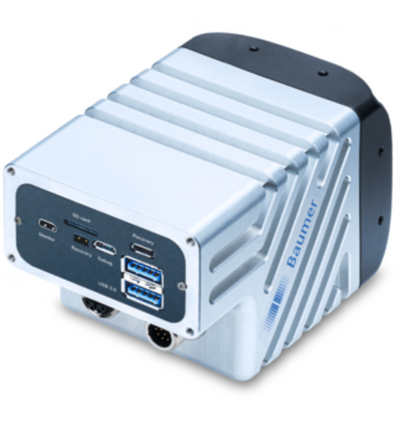

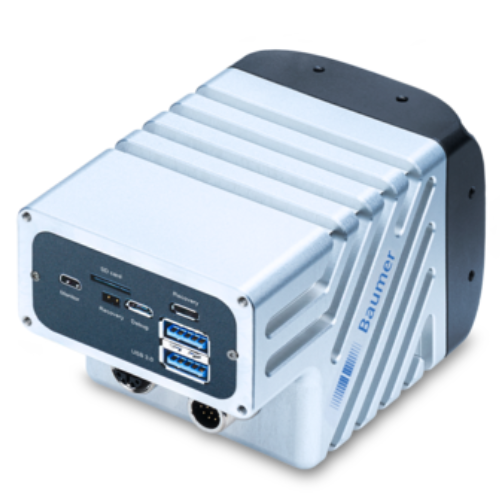

- Slots for SD cards, HDMI, and USB
Reliable image processing with an industrial design
- Aluminum housing with C mount
- Integrated illumination controller with brightness ontrol
- 4 power outputs with max. 120 W (max. 48 V / 2.5 A)
- Wide range of thermally optimized accessories to achieve protection class IP 54, IP 65, and IP 67
Best image quality with full computing power
- Auto Exposure
- Auto white balance
Easy implementation of fast or light-intensive applications
- Short exposure times from 1 µs
Download Product PDF:
TECHNICAL INFORMATION:
- Sony IMX265
- 2048 x 1536 px, 1/1.8" CMOS, 55 fps
- Quad-Core ARM Cortex-A57
- 128-core NVIDIA MAxwell GPU
- 4 GB 64-bit LPDDR4
- Gigabit Ethernet, USB 3.0, RS232
Quick Info for the Baumer vax-32m.i.nvn
| Camera Category: | SMART |
|---|---|
| Camera Series: | AX |
| FPS: | 55 |
| Interface: | GigE |
| Manufacturer: | Baumer |
| Resolutions: | 2048 x 1536 |
| Scanning Mode: | - |
| Signal System: | Monochrome |
| Technology: | GigE Cameras |
| Technology: | Smart Cameras |
