Baumer HXC20 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Baumer HXC20
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
HXC20
HXC20c
HXC20NIR
Baumer HXC20 Camera - Digital Monochrome Progressive Scan With Camera Link® interface
Maximum speed and resolution – the cameras of our HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times.
FEATURES:
- CameraLink® Full progressive scan CMOS camera
- 2048 x 1088 pixel with up to 337 full frames per second
- Excellent image quality
- Global shutter architecture for minimized motion blur
- Low noise due to correlated double sampling (CDS)
- Binning, subsampling and true partial scan function (ROI) for increased frame rates
- High Dynamic Range (HDR) image acquisition
- External synchronization via industrial compliant process interface (trigger / flash)
- Integrated supplementary function for flexible integration
- Sequence function up to 231-1 frames per sequence
- Integrated 256 MByte RAM for temporarily image data buffering
- Compact and lightweight aluminum housing

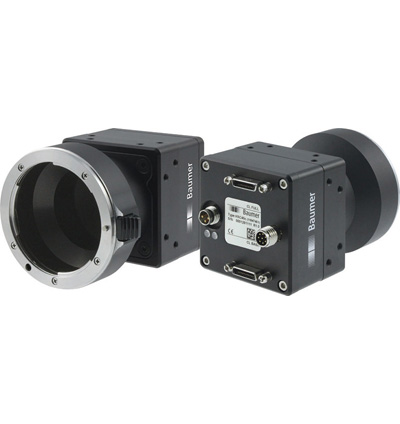

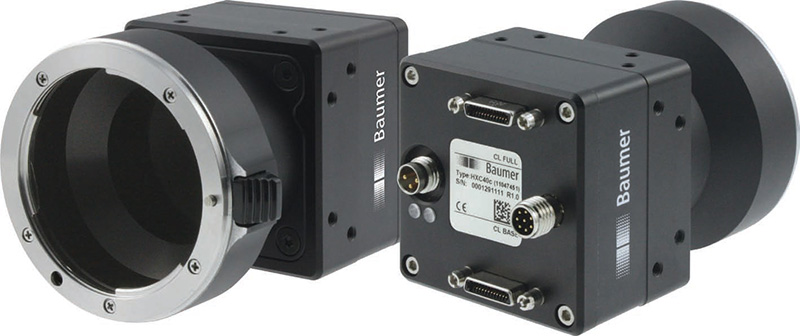

- Two standard 26 pin Mini-CameraLink® connectors
- Support for CameraLink® Base, Medium, Full and 10 tap configurations
- Camera parameter programmable via configuration tool for Windows
- Baumer-GAPI: Flexible, generic software interface for Windows / Linux
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: CMOSIS CMV2000
- Type: 2/3" global shutter CMOS
- Resolution: 2048 × 1088 px
- Frame rate max.: 337 fps
- Exposure time: 0,02 ... 1000 ms
- Image formats:
Full Frame, 2048 × 1088 px, max.337.0 fps
Binning 2×1, 1024 × 1088 px, max. 337.0 fps
Subsampling 2×2, 1024 × 544 px, max. 664.0 fps - Pixel formats: Mono 8, Mono10, Mono12
- Analog controls: Gain (0 … 12 dB), Offset (0 … 255 LSB)
- Color models: Mono
- Internal buffer: 256 MB
- Synchronization: free running, trigger
- Trigger sources: Hardware, Software, FrameGrabber
- Digital inputs: 3 output lines
- Data interface: CameraLink® Full, Connector: 2 x Standard SDR26 (Mini CL)
- Process interface: M8 / 8 pins
- Power supply: M8 / 3 pins
- Material: housing: aluminum

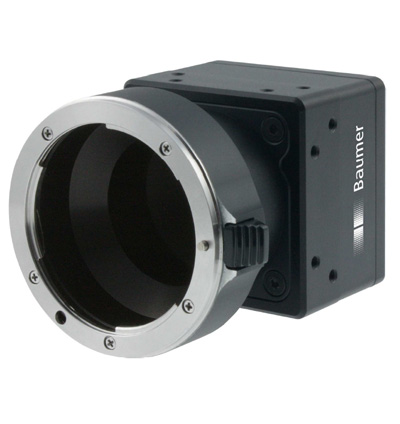

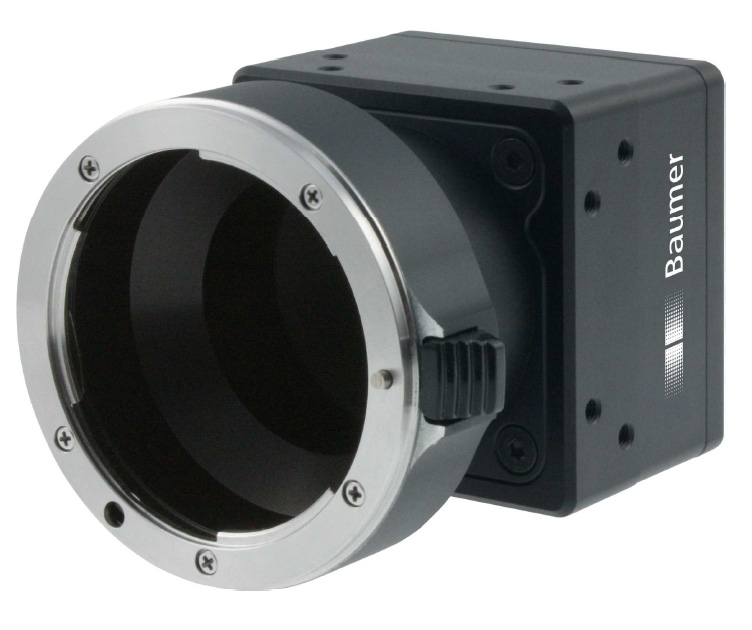

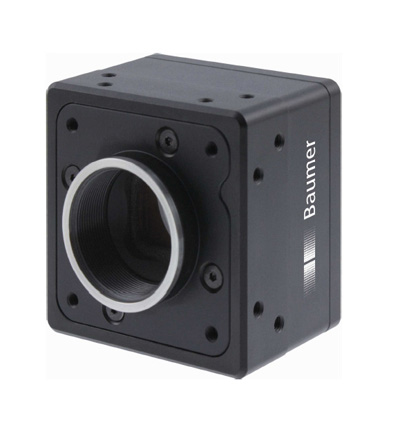

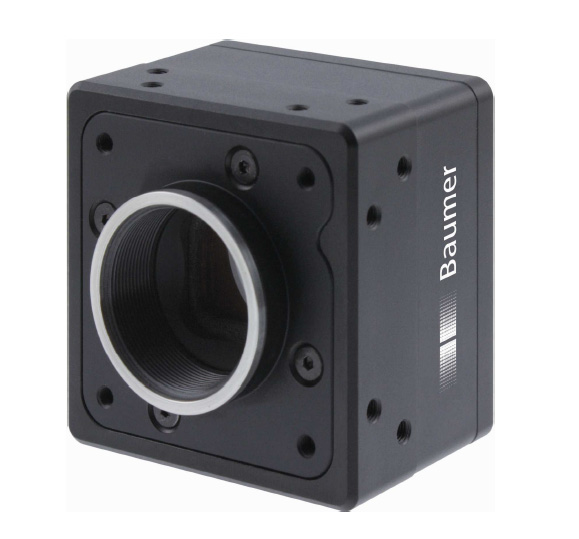

- Lens mount: C-mount, F-mount
- Width: 52 mm
- Height: 52 mm
- Depth: 37 mm
- Weight: 185 g
- Voltage supply range +Vs: 9,6 ... 30 VDC
- Power consumption: approx. 5.5 Watts
Quick Info for the Baumer HXC20
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 337 |
Interface: | Camera Link |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Monochrome |
Quick Info for the Baumer HXC20c
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 337 |
Interface: | Camera Link |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Color |
Quick Info for the Baumer HXC20NIR
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 337 |
Interface: | Camera Link |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Monochrome |
