CIS VCC-GC21U11PCL Camera

2M resolution, high-speed, PoCL interfaced camera, C21 PCL series.

280fps with 2M pixels resolution, high speed PoCL camera. 29x29x45mm in size, approx. 75g. Since no power cable is needed, high-speed system with simple structure can be planned. Best suited for speed and size-conscious camera link embedded systems such as LED/LCD related inspection, mounting board inspection, semiconductor related, PTP inspection, and others.

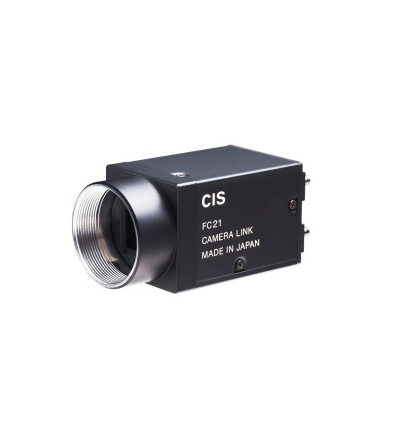

* Picture of the same sized, 4M color model is shown.

FEATURES:

• Pixel clock 80MHz
• Global shutter CMOS
• PoCL I/F
• 29 x 29 x 45mm in size

Download Product PDF:

• CIS VCC-GC21U11PCL Camera

TECHNICAL INFORMATION:

• Resolution: 2M
• Frame Rate: 280 (8Tap Ful)
• Output Format: 8bit/10bit
• Image Sensor: CMOS (diagonal length: 12.775mm)
• Effective Pixels: 2048 x 1088
• Unit Cell Size (μm): 5.5 x 5.5
• Horizontal Frequency (kHz): 280.867 (8Tap Full )
• Pixel Clock (MHz): 80
• Power Consumption: 2.7W ( 4Tap Medium)
• Power Requirement: PoCL (DC+12V ±10%)
• Min. Illumination: F1.4, 9.0lx
• Sensitivity: F5.6, 400lx
• Shutter Variable Range: OFF ? 1/50,000s
• Signal I/F: PoCL
• Lens Mount: C Mount
• Weight (g): 75
• Dimensions (W) x (H) x (D)mm: 29 x 29 x 45
