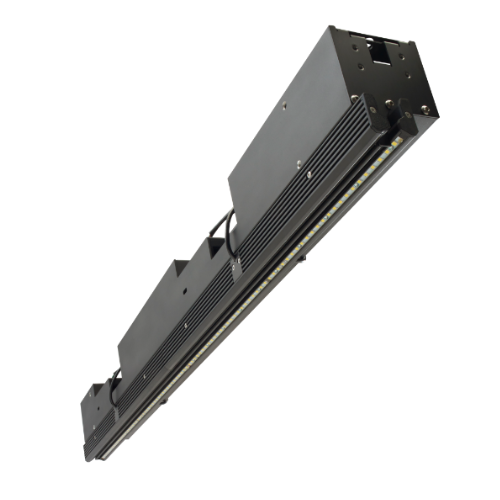

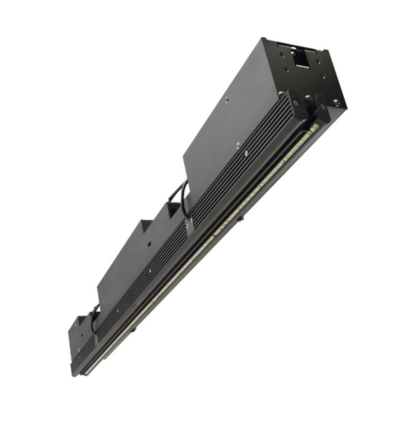

Phase 1 offers the AxCIS Mono 800mm, providing superior imaging capabilities that also enable accurate metrology applications. AxCIS provides high-resolution 28um pixel size (900dpi), high-speed 120kHz, unique features such as HDR imaging using dual exposure mode, optional LED lighting, and fiber optic cables with immunity to EMI radiation. Furthermore, AxCIS is cost-effective and offers competitive advantages with lower system-level costs.
TECHNICAL INFORMATION:
- Seamless image over entire FOV without missing pixels
- High speed 120kHz/60kHzx2 mono/HDR
- High resolution 28um (900dpi)
- HDR mode with dual exposure control
- True metrology applications
- Field replaceable LED lights (optional)
- Next generation Camera Link HS interface with field proven data reliability
- Fiberoptic cables for extended cable lengths to 100 meters
- Single 24VDC power supply
Software
Sapera LT (version 8.7 or later) software development toolkit which features:
- CamExpert’s intuitive graphical interface for configuration and setup
- Sapera LT’s Trigger-To-Image Reliability tool (T2IR) for system monitoring
Quick Info for the Dalsa axcis-mono-800mm
| Camera Series: | Dalsa CIS |
|---|---|
| Interface: | Camera Link HS |
| Manufacturer: | Dalsa |
| Resolutions: | 28 um |
| Signal System: | Monochrome |
| Technology: | Camera Link HS Cameras |
