Dalsa Falcon2 Series: Falcon2 8M Pixel Camera Link Camera

The new Dalsa Falcon2 area scan cameras incorporate large resolutions and faster frame rates enabling high-speed image capture with superb spatial resolution. Features such as global shutter and improved image quality make these Falcon2 cameras the camera of choice in applications where throughput, resolution and dynamic range matter. Global shuttering removes unwanted smear and time displacement artifacts related to rolling shutter CMOS devices.

Inside these Falcon2 cameras is our latest CMOS sensor, which has reduced dark noise levels and improved dark offset, FPN (fixed pattern noise) and PRNU (Pixel Response Non-Uniformity) levels. In addition, region of interest features will offer opportunities for higher frame rates and new applications.

The Falcon2 cameras are compliant with GenICam™ and full Camera Link™ specifications—delivering 8 or 10 bits of data on 8 taps (frame rates are specified at 8 bits. Further, the M42x1 thread opening allows the use of your lens of choice).

FEATURES:

  • 8 megapixels, 90 fps
  • Selectable 4:3 (3328 x 2502) or 1:1 (2816 x 2816) aspect ratio
  • High responsivity
  • Global shutter and reset
  • Exposure control
  • Concurrent integration and readout
  • Faster frame rates through vertical windowing
  • Base Mini-Camera Link
  • 10 meter transmission @ 80 MHz
  • Flat field correction
  • Adjustable timing modes
  • Adjustable gain and offset
  • Test patterns and camera diagnostics

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution:
    4:3 aspect ratio: 12M—4096 (H) x 3072 (V), 8M—3328 (H) x 2502 (V), 4M—2432 (H) x 1728 (V)
    1:1 aspect ratio: 8M—2816 (H) x 2816 (V), 4M—2048 (H) x 2048 (V)
  • Pixel Rate: 8 x 76 MHz or 10 x 76 MHz
  • Max. Frame Rate: 12M—58 fps / 8M—90 fps / 4M—168 fps, all at 8-bits (Maximum frame rates are dependent on the aspect ratio used.)
  • Pixel Size: 6 μm x 6 μm
  • Bit Depth: 8 or 10 bit
  • Lens Mount: M42 x 1
  • Dynamic Range: 57 dB
  • Exposure Time: 20 µs minimum
  • Size: 60 mm (H) x 60 mm (W) x 80.5 mm (D)
  • Mass: < 300 g
  • Operating Temp: 0 °C to 50 °C, front plate temperature
  • Power Supply: 12 V to 24 V DC
  • Power Dissipation: 10 W
  • Regulatory Compliance: CE and RoHS
  • Data Interface: 2 x Full Camera Link—SDR26
  • Power Connector: Hirose 12-pin circular
  • Mechanical Dimensions:
  • 60 mm (H) x 60 mm (W) x 80,5 mm (D) (75 mm deep excluding the back fins)

Request a Quote

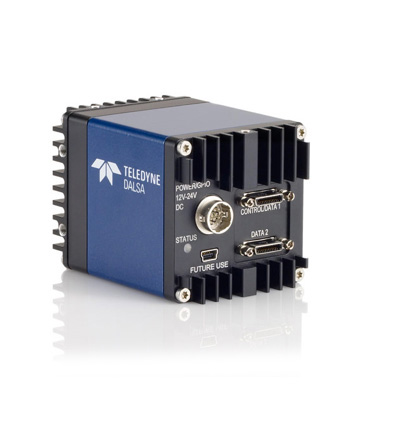

Product image of Dalsa Falcon2 8M

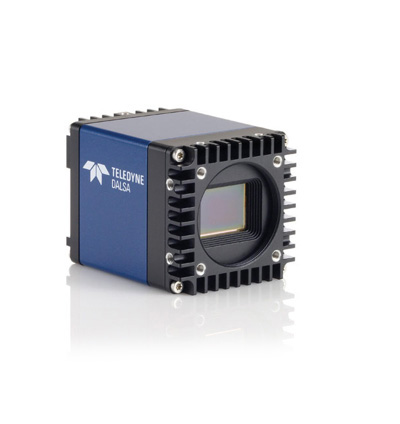

Product image of Dalsa Falcon2 8M

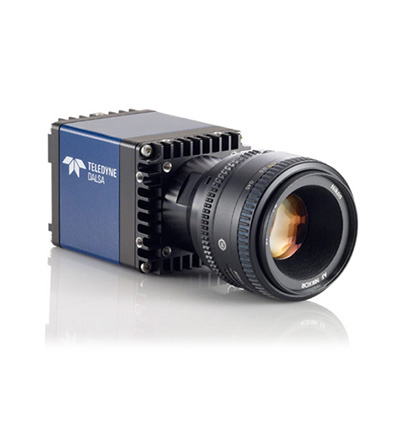

Product image of Dalsa Falcon2 8M
Product Photos
Product image of  Dalsa Falcon2 8M Product image of  Dalsa Falcon2 8M Product image of  Dalsa Falcon2 8M

Quick Info for the Dalsa 8M Color

Camera Category: Area Scan
Camera Series: Falcon2
FPS: 90
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 8.3 MP
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the Dalsa 8M Mono

Camera Category: Area Scan
Camera Series: Falcon2
FPS: 90
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 8.3 MP
Scanning Mode: Area Scan
Signal System: Monochrome
