Dalsa Genie Nano 1240 Camera
Get a Quote for the Dalsa Genie Nano 1240
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
Genie Nano-C1240
Genie Nano-M1240

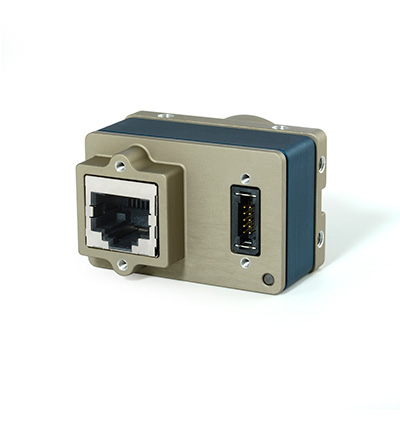

Genie Nano 1240 offers compact GigE Vision and uncompromising image quality at a low cost.
The Genie Nano 1240 uses the On-Semi Python1300 Monochrome or Color sensor with a resolution of 1280 x 1024. Teledyne DALSA's Burst Acquisition and TurboDrive feature allows for image capture rates of up to 83 fps in 1.3M pixels resolution while maintaining very good image quality.
The Genie Nano 1240 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Teledyne DALSA GigE cameras, the Genie Nano 1240 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC. Mono and NIR models differ only in their spectral response. See datasheet for response curves. And all Genie Nano cameras are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.
Download Product PDF:
TECHNICAL INFORMATION:
- Uses standard PC Ethernet port & hardware
- Supports cable lengths up to 100 m (CAT-5e or CAT-6)
- Simplified set-up with field proven Sapera Essential software featuring CamExpert
- Engineered to accommodate industrial environment with a ruggedized, screw mount, RJ-45 connector
- On-Semi Python1300 Color or Monochrome Sensor
Quick Info for the Dalsa Genie Nano-C1240
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano |
FPS: | 83 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1280 x 1024 |
Scanning Mode: | Area Scan |
Signal System: | Color |
Quick Info for the Dalsa Genie Nano-M1240
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano |
FPS: | 83 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1280 x 1024 |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
