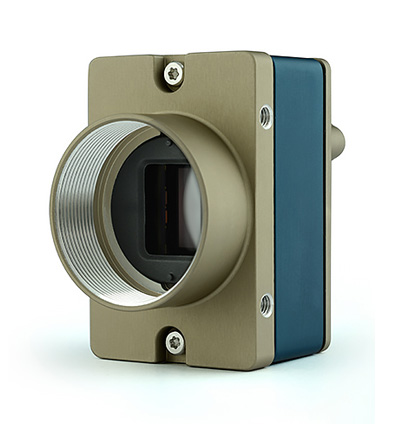

Dalsa Genie Nano 1280 Camera

Monochrome/NIR Series

The Genie Nano-M1280 uses the On-Semi Python1300 Monochrome sensor with a resolution of 1280 x 1024. Teledyne DALSA's Burst Acquisition and TurboDrive feature allows for image capture rates of up to 213 fps in 1.3M pixels resolution while maintaining very good image quality.

The Genie Nano-M1280 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Teledyne DALSA GigE cameras, the Genie Nano-M1280 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC. Mono and NIR models differ only in their spectral response. See datasheet for response curves. And all Genie Nano cameras are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.

Color Series:

The Genie Nano-C1280 uses the On-Semi Python1300 Color sensor with a resolution of 1280 x 1024. Teledyne DALSA's Burst Acquisition and TurboDrive feature allows for image capture rates of up to 213 fps in 1.3M pixels resolution while maintaining very good image quality.

The Genie Nano-C1280 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Teledyne DALSA GigE cameras, the Genie Nano-C1280 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC. And all Genie Nano cameras are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.

TECHNICAL INFORMATION:

• Uses standard PC Ethernet port & hardware
• Supports cable lengths up to 100 m (CAT-5e or CAT-6)
• Simplified set-up with field proven Sapera Essential software featuring CamExpert
• Engineered to accommodate industrial environment with a ruggedized, screw mount, RJ-45 connector
