The Dalsa Genie TS-M2560 brings new levels of performance with its high frame rate and increased onboard memory.

Using an Anafocus Lince 5M monochrome CMOS sensor with a resolution of 2560 x 2048, the Dalsa Genie TS 2560 camera's "Fast Mode" allows for image capture rates of 51 fps in 5 megapixel resolution with a true global shutter while maintaining high image quality..

The Genie TS-M2560 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genie cameras, the TS-M2560 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Uses standard PC Ethernet port & hardware
  • Supports cable lengths up to 100 m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera Essential software featuring CamExpert
  • Engineered to accommodate industrial environment with a Ruggedize, screw mount, RJ-45 connector
  • Auto-Iris (Video, DC or Motorized)

PROGRAMMABILITY:

  • Higher frame rates achievable in partial scan mode
  • Global electronic shutter with exposure Control
  • Multi-Exposure Feature
  • Programmable LUTs
  • On-board Image compression
  • Transfer On-Demand Function
  • IEEE1588 Precise time Protocol

TYPICAL APPLICATIONS:

  • Electronics manufacturing inspection
  • Industrial metrology
  • Intelligent traffic systems

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 2560 x 2048
  • Frame Rate: 51 fps
  • Data Output Transfer: Gigabit Ethernet, also supports 100 Mbps
  • Pixel Size: 5 µm
  • Data Format: 8-bits
  • Exposure Control: Automatic, Programmable, or via External Trigger
  • Dynamic Range: 52 dB
  • Gain Control: Automatic, Manual
  • Image Buffer 512MB of On-board memory
  • Lens Mount: CS-MOUNT
  • Size: 49 mm x 49 mm x 54 mm
  • Mass: ~196 g
  • Operating Temp: -20 to +60c
  • Power Supply: 12 to 24V or Power Over Ethernet (POE)
  • ower Dissipation: ~4.5 to 5.5W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Micro-D 25-pin and 4-pin auto-Iris
  • Regulatory Compliance: FCC Class A, CE, RoHs 2004/105/EC
  • Camera Specification: GigE Vision v1.2 Compliant
  • Software Platform: Teledyne DALSA Sapera LT or 3rd Party Genicam Compliant SDK

Request a Quote

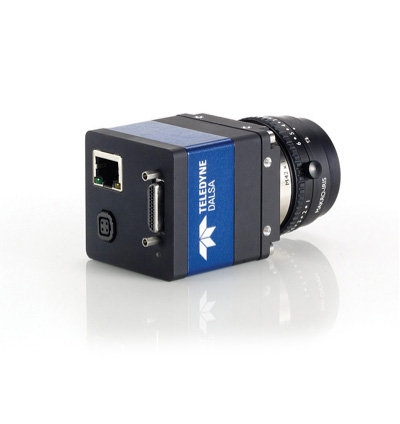

Product image of Dalsa TS 2560

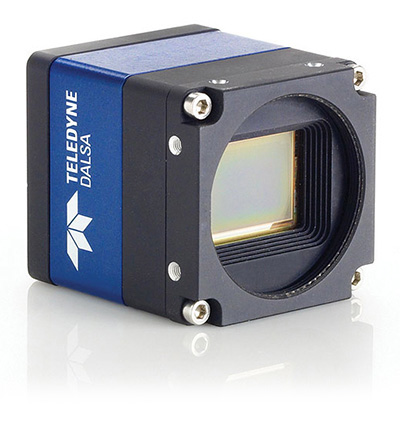

Product image of Dalsa TS 2560
Product Photos
Product image of  Dalsa TS 2560 Product image of  Dalsa TS 2560

Quick Info for the Dalsa TS-M2560

Camera Category: Area Scan
Camera Series: Genie TS
FPS: 51
Interface: GigE
Manufacturer: Dalsa
Resolutions: 5 MP
Scanning Mode: Area Scan
Signal System: Monochrome
