Available Variations:

  • C1024-1/3

  • C1024-1/3CS

  • C1024-1/3CS-RA

  • C1024-1/3-RA

The Genie C1024 uses a Sony CCD, Color sensor with a resolution of 1024 x 768.

Operating at 20 frames per second at full resolution, Dalsa Genie C1024 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the C1024 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Active resolution of 1024 x 768
  • 24-bits Pixel Depth RGB
  • High frame rates with vertical windowing, up to 146 fps
  • On-board Color Conversion
  • Engineered with DALSA's Trigger-to-Image Reliability framework
  • GigE Vision compliant
  • Available in 1/3” or ½” sensor version
  • Engineered to accommodate industrial style, screw mount, RJ-45 connectors

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 1024 x 768
  • Frame Rate: 20 fps
  • Pixel Size: 4.65 µm
  • Data Format: 32-bits, YUV or Raw Bayer
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 57 dB
  • Nominal Gain Range: -6 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GEN0-C102x

Request a Quote

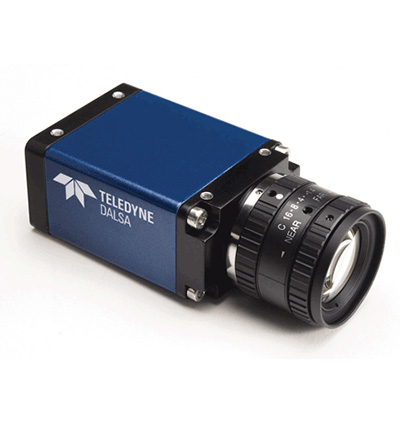

Product image of Dalsa C1024
Product Photos
Product image of  Dalsa C1024

Quick Info for the Dalsa C1024-1/3

Camera Category: Area Scan
Camera Series: Genie
FPS: 20
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Color

Quick Info for the Dalsa C1024-1/3CS

Camera Category: Area Scan
Camera Series: Genie
FPS: 20
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Color

Quick Info for the Dalsa C1024-1/3CS-RA

Camera Category: Area Scan
Camera Series: Genie
FPS: 20
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa C1024-1/3-RA

Camera Category: Area Scan
Camera Series: Genie
FPS: 20
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: Color
