Dalsa Genie HM1024 Camera

The Dalsa Genie HM1024 offers unprecedented high-speed image acquisition with uncompromised signal-to-noise ratio, significantly optimizing the opportunity for increased yield. DALSA's proprietary sensor technology allows for image capture rates of 117 fps in XGA resolution while maintaining exceptional image quality.

The Genie HM1024's gigabit Ethernet interface takes full advantage of this Genie's high frame rate by transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the HM1024 is based on the AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Active resolution of 1024x768 at 117 fps
  • 8-bits Pixel Depth
  • Horizontal and Vertical Binning
  • Engineered with DALSA's Trigger-to-Image Reliability framework
  • GigE Vision compliant
  • Uses standard PC and server Ethernet ports & hardware
  • Facilitates cable lengths up to 100m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera Essential software
  • Engineered to accommodate industrial style, screw mount, RJ-45 connectors
  • Small compact form factor

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 1024 x 768
  • Frame Rate: 117 fps
  • Pixel Size: 7.4 µm
  • Data Format: 8 & 10 bits
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 48 dB
  • Nominal Gain Range: 0 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C or CS-mount
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GEN0-H102x

Request a Quote

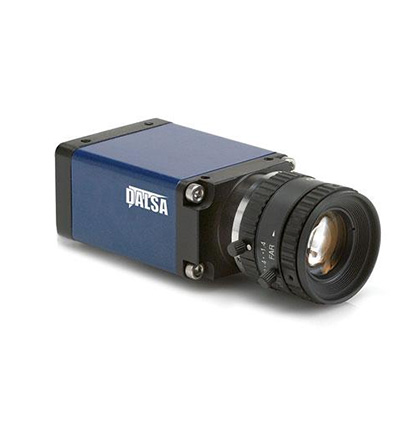

Product image of Dalsa HM1024
Product Photos
Product image of  Dalsa HM1024

Quick Info for the Dalsa HM1024

Camera Category: Area Scan
Camera Series: Genie
FPS: 117
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
