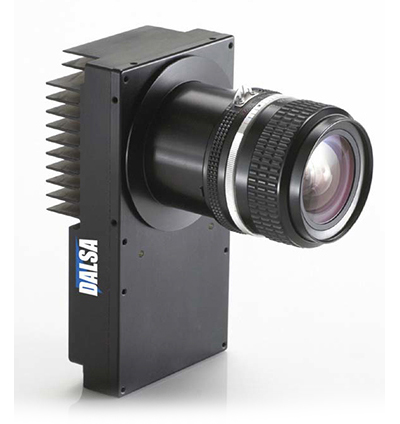

Dalsa Piranha3 12k Camera

Piranha3 Series: Piranha3 12k, 23 khz, Rectangular

The Piranha3 12k cameras take imaging to a new level with eight outputs running at 40 MHz and a line rate up to 23.5 kHz.

More detail. Fewer cameras.

The camera’s 12k resolution surpasses the resolution of any other line scan camera, delivering more detail with fewer cameras in a multi-camera system for measurable cost savings. When you use fewer cameras, you use fewer framegrabbers, lenses, computers and cables. Additional system cost-savings stem from the Piranha3’s superior sensor alignment accuracy, high responsivity and 5 micron pixel pitch which minimizes the cost of optics. The Piranha3 family delivers the lowest price/pixel system solution.

More programmability than ever before.

A Camera Link interface ensures easy integration of the Piranha3 into existing systems. With a selectable number of taps, bit depth, and Camera Link mode, the Piranha3 cameras are extremely flexible. Other programmable features include flat field correction, exposure control, and gain and offset control.

FEATURES:

• First 12k (5 µm) line scan camera available world wide.
• Line rate up to 23.5 kHz
• 320 MHz throughput (8x40 MHz)
• 100% fill factor
• ±50 µm sensor alignment accuracy
• High responsivity
• Flat field correction
• RoHS compliant
• Two mechanical form factors (rectangular P3-80 or "square" P3-87) offer variety of mounting options

Download Product PDF:

• Dalsa Piranha3 12k Camera

TECHNICAL INFORMATION:

• Resolution: 12288
• Data Rate: 320 MHz
• Max. Line/Frame Rate: 23.5 kHz
• Pixel Size: 5 x 5 µm
• Data Format: 8, 12 bit
• Output: Med, Full Camera Link
• Lens Mount: M72 x 0.75
• Responsivity: 44 / 27 DN/(nJ/cm²) broadband @ +10 dB
• Dynamic Range: 54 dB
• Nominal Gain Range: ±10 dB
• Size: 150 x 42 x 80 / 85 x 54.2 x 80 mm
• Mass: <630 g / <125 g
• Operating Temp: 10 °C to 50 °C
• Power Supply: 12 V to 15 V
• Power Dissipation: <15 W
• Regulatory Compliance: CE, RoHS
• Control: MDR26 Camera Link
• Data: Shared with control
• Power: Hirose HR10 6 pin
