Emergent Vision Technologies Introduces LB-8K!

Line Scan imaging just got turned up a notch with the introduction of the Accel Series 25 GigE Cameras. The LB-8K is the world's first ever 25 GigE Line Scan Camera from Emergent Vision Technologies. The new LB-8K provides un-compromised line scan imaging possibilities for all your high-speed inspection needs. Integrate the new LB-8K to enable machine vision applications with low-noise, high-precision functionality and make processes seamless in ultra-high-speed environments.

The LB-8K is the first 8K line scan cameras from Emergent Vision Technologies. Powered by the E2V Elite 8K CMOS image sensor, the LB-8K provides multilinear scans at true 8K vision. This results in a higher signal to noise ratio and makes high-precision imaging possible even when illumination is a challenge.

Download Product PDF:

TECHNICAL INFORMATION:

  • 8,192 effective pixels horizontal
  • E2V Elite 8K line scan image sensor
  • Global shutter CMOS technology
  • High-speed 25GigE SFP28 interface
  • Single Line - 200KHz
  • Bilinear - 100KHz
  • Trilinear - 66KHz
  • 7.5µm cell size for low-noise capture
  • GigE Vision, GenICam compliant

Request a Quote

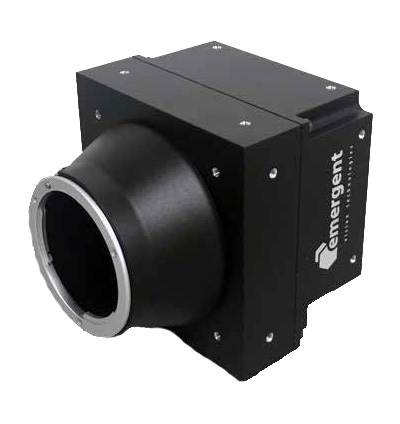

Product image of Emergent Vision Technologies LB-8K
Product Photos
Product image of  Emergent Vision Technologies LB-8K

Quick Info for the Emergent Vision Technologies LB-8K-C

Camera Category: Line Scan
Camera Series: Accel 25 Gige Line Scan
FPS: -
Interface: SFP28 - 25 GigE
Manufacturer: Emergent Vision Technologies
Resolutions: 8192
Scanning Mode: Line Scan
Signal System: Color

Quick Info for the Emergent Vision Technologies LB-8K-M

Camera Category: Line Scan
Camera Series: Accel 25 Gige Line Scan
FPS: -
Interface: SFP28 - 25 GigE
Manufacturer: Emergent Vision Technologies
Resolutions: 8192
Scanning Mode: Line Scan
Signal System: Monochrome
