FLIR A310 pt (pan-tilt) monitoring system is designed to withstand the elements to remotely collect valuable data.

"Smart" thermal imagers and software can alert operators to security breaches and impending problems indicative of excess heat 24/7/365 while monitoring:

  • Electrical Substations
  • Hazardous Material Piles
  • Warehouses
  • Critical Vessels

FEATURES:

  • FLIR A310 camera: 320 x 240 pixel IR resolution
  • Precision pan-tilt: Fully programmable scan patterns, radar slew-to-cue, and slew-to-alarm functionality
  • Multi-sensor configurations include a day/night 36x zoom color CCD camera in the same pan-tilt package
  • Built-in spot and area temperature measurement analysis functionality
  • Extensive alarm functionality
  • h.264, MPEG-4, and MJPEG streaming
  • Built-in web server
  • 100MB Ethernet supplies simultaneous analog and digital video at 30 Hz
  • Composite video output
  • IP control: Integrate with any existing TCP/IP network and control over a PC
  • Serial control interface: Control remotely using Pelco D or Bosch commands over RS-232, RS-422 or RS-485
  • Multi-camera software: FLIR Sensors Manager allows users to manage and control a PT-Series camera in a TCP/IP network
  • IP-66 encapsulation

Download Product PDF:

TECHNICAL INFORMATION:

  • Detector Type: Uncooled Microbolometer
  • Spectral Range: 7.5 – 13.0 μm
  • Resolution: 320 × 240
  • Detector Pitch: 25 μm
  • NETD: <50 mK
  • Time Constant: <12 ms
  • Frame Rate: 30 Hz/9 Hz
  • Standard Temperature Range: -20oC to 120oC (-4oF to 248oF ) 0oC to 350oC (32oF to 662oF )
  • Spotmeter: Unlimited Geospatial Measurement Points
  • Area: Unlimited Geospatial Measurement Points
  • Isotherm: 1 with above/below/interval
  • Difference Temperature: Delta temperature between measurement functions or reference temperature
  • Reference Temperature: Manually set or captured from any measurement function
  • Atmospheric Transmission Correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity
  • Optics Transmission Correction: Automatic, based on signals from internal sensors
  • Ethernet Video: H.264, MPEG-4, and MJPEG Streaming
  • Analog Video: NTSC/PAL
  • Point to Point (Stand Alone), Ethernet, Network Enabled: Standard
  • Pan Angle/Speed: Continuous 360o; 0.1o to 60o/sec
  • Tilt Angle/Speed: 45 to -45; 0.1o to 30o/sec
  • Weight: 46 lb (configuration dependent)
  • Input Voltage: 21-30 VAC 21-30 VDC
  • Power Consumption: 24 VAC: 85 VA (max w/o heaters); 215 VA (max w/ heaters) 24 VDC: 65 W (max w/o heaters); 195 W (max w/ heaters)

Request a Quote

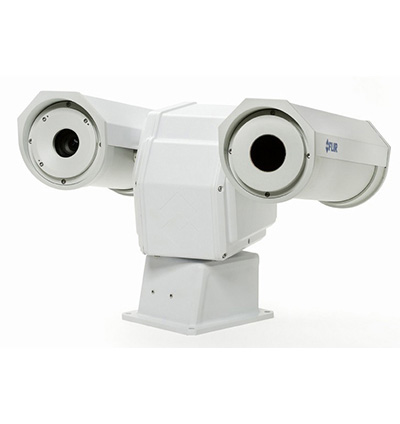

Product image of FLIR A310PT
Product image of FLIR A310PT
Product Photos
Product image of  FLIR A310PT Product image of  FLIR A310PT

Quick Info for the FLIR A310PT

Camera Category: Area Scan
Camera Series: Thermal Imaging
FPS: 30
Interface: GigE
Manufacturer: FLIR
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: IR
