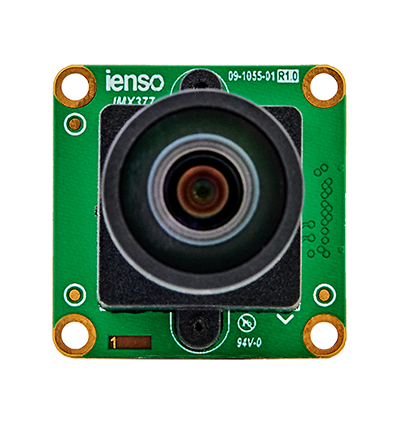

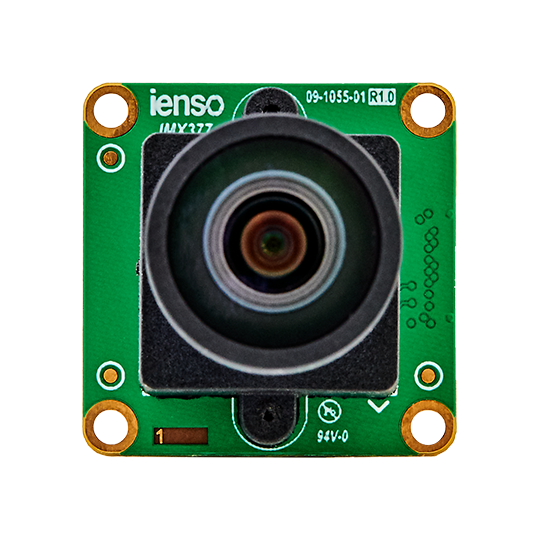

iENSO ISM-IMX377 Camera

The iENSOISM-IMX377 is the quality leader MIPI sensor module that adapt to iENSO’sembedded ecosystem of SOMs, camera modules, and wireless connectivity modules.

The ISM-IMX377 uses SONY’s IMX377 sensor, with advanced technologies, including Digital Overlap High Dynamic Range to output brilliant colors and Scalable Low Voltage Signaling Embedded Clock for high speed and multi-stream output.

The SONY IMX377 sensor features a type 1/2.3” color CMOS with 8.3M effective pixel to achieve true 4K UHD resolution with digital overlap HDR technology and it’s suitable for various iENSOlens types.

Download Product PDF:

• iENSO ISM-IMX377 Camera

TECHNICAL INFORMATION:

• Framerate: 60 fps at UHD, 12 bits (120 fps at FHD, 10 bits) over 4/8-lane MIPI CSI-2 interface for RAW10/RAW12 data output.
• Pixel details: 2.0x2.0 μm, 3840 x 2160 array (16:9 format), STARVIS BSI, ME/DOL-HDR, rolling shutter.
• Package/Environmental: Ceramic LGA with 128 pins, -10°C to 60°C sensor ambient guaranteed performance temperature.

Request a Quote
