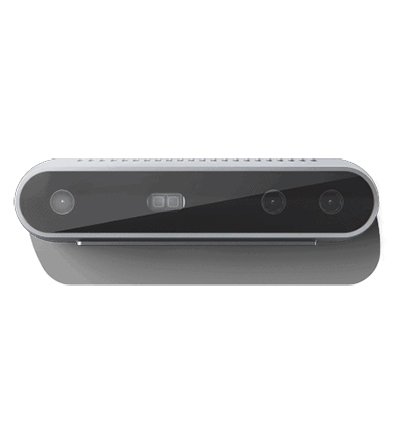

Intel RealSense Depth D415 Camera

A lower-cost, yet highly capable depth camera. the Intel® RealSense™ D415 has a standard field of view well suited for high accuracy applications such as 3D scanning. With a rolling shutter on the depth sensor, the D415 offers our highest depth quality per degree. Featuring an integrated RGB sensor, the D415 is perfect for facial authentication, 3D scanning, or volumetric capture.

Highlights:

• Well suited for high accuracy applications, including facial authentication, 3D scanning, or volumetric capture
• Tightly focused field of view
• Our highest depth quality per degree
• Features an integrated RGB sensor
• Puts an Intel module and vision processor into a small form factor ideal for development and productization
• A lower-cost, yet highly capable depth camera

TECHNICAL INFORMATION:

• Use environment: Indoor/Outdoor
• Image sensor technology: Rolling Shutter
• Ideal range: .5 m to 3 m
• Depth technology: Active IR Stereo
• Minimum depth distance (Min-Z) at max resolution: ~45 cm
• Depth Accuracy: <2% at 2 m1
• Depth Field of View (FOV): 65° × 40°
• Depth output resolution: Up to 1280 × 720
• Depth frame rate: Up to 90 fps
