JAI CV-M9 Camera

The CV-M9CL is a versatile 3CCD camera

The CV-M9CL is an advanced 3CCD camera featuring high resolution (3 x 800,000 pixels), progressive scan, Camera Link interface and a fast readout rate of 30 fps with full resolution. The camera’s built-in chromatic shading reduction makes the selection of suitable lenses easier.

The CV-M9CL outputs pure pixel information with programmable individual exposure for R, G and B. The prism assembly features co-site sampling, where all 3 CCDs are aligned to each other without spatial offset. The result is a high performance camera suitable for a wide range of industrial applications, as well as for medical/scientific use.

Dimensions (HxWxL): 50 x 60 x 99 mm

FEATURES:

• 1/3" progressive scan
• 3CCD RGB color
• 1024 x 768 active pixels per color
• 4.65 µm square pixels
• Chromatic shading-reduction function
• 10 or 8 bits per color

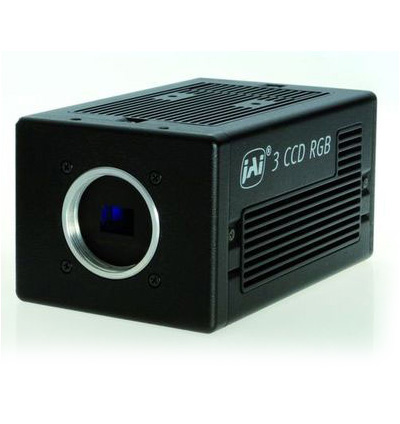

• C-mount lens adapter

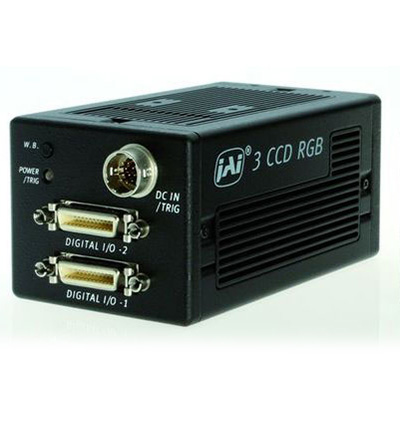

• Rear panel LED (power/trigger)

Download Product PDF:

• JAI CV-M9 Camera

TECHNICAL INFORMATION:

• Sensor: 3 x 1/3” progressive scan CCD
• Pixel Clock: 33.75 MHz
• Frame rate: 30 frames/sec. (792 lines per frame)
• Cell size: 4.65 (h) x 4.65 (v) µm
• Active pixels: 1024 (h) x 768 (v)
• Read-out modes:
  Full - 1024 (h) x 768 (v) 30 fps
  1/2 partial scan - 1024 (h) x 384 (v) 48 fps
  1/4 partial scan - 1024 (h) x 192 (v) 68 fps
  1/8 partial scan - 1024 (h) x 96 (v) 86 fps Vertical binning 0 1024 (h) x 384 (v) 50 fps
• Sensitivity: 2 Lux (On sensor, Max gain, 50% video)
• S/N ratio: >50 dB (Green ch., 0 dB gain)
• Video output:
  3 x 8 bit RGB: Base config. CL
  3 x 10 bit RGB: Medium config. CL
• Operating Temperature: -10°C to +45°C
• Humidity (operation): 20 - 90% non-condensing
• Power: 12V DC ±10% 6 W
• Lens mount: C-mount (Max 4.0 mm thread)
• Dimensions (H x W x L): 50 mm x 60 mm x 99 mm
• Weight: 400 g
