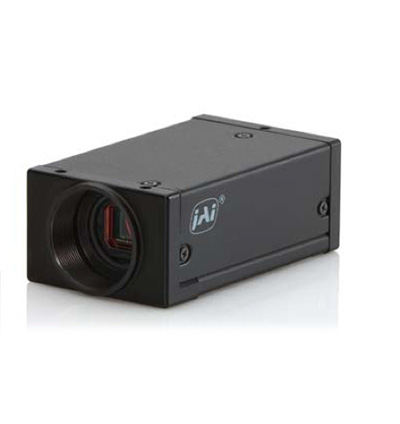

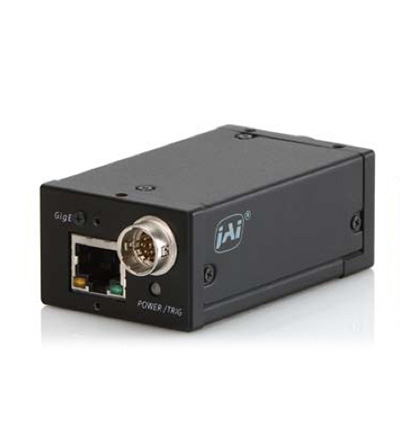

JAI CM-140-UV Camera
Get a Quote for the JAI CM-140-UV
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
CM-140GE-UV
CM-140MCL-UV
CM-140PMCL-UV
The CM-140GE-UV is specially designed for UV sensitivity
The CM-140GE-UV replaces the base sensor found in the standard monochrome model with the Sony ICX407BLA sensor, specially designed for UV sensitivity.
The UV model provides the same progressive scan operation with 1.4 million pixels resolution and GigE Vision interface, but offers extended sensitivity to below 200 nm.
The camera outputs 16 full frames/second in continuous (free-run) mode and up to 30 frames/second in external trigger modes. Higher frame rates can be achieved by using the partial scan or vertical binning modes.
The unique sequencer function makes it possible to change exposure time, gain and ROI on the fly.
The programmable GPIO allows flexible configuration of inputs/outputs as well as the timer/counter function
Dimensions (HxWxL): 29 x 44 x 75 mm.
The CM-140GE-UV is also available with a factory-installed Right Angle Adapter. The adapter enables the camera to “look” at a 90º angle and is designed for a range of inspection tasks where physical access on production lines is limited.
FEATURES:
- C3 Compact series
- 1/2” monochrome progressive scan camera
- UV-sensitive CCD
- 1380 (h) x 1040 (v) active pixels
- 4.65 µm square pixels
- 16 frames/second with full resolution
- Partial scan and vertical binning
- Unique sequencer function
- Programmable GPIO
- GigE Vision interface
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: 1/2” progressive scan
- Pixel Clock: 33.75 MHz
- Frame rate full frame: 31.08 frames/second (1068 lines per frame)
- Active area: 6.4 (h) x 4.8 (v) mm
- Cell size: 4.65 x 4.65 pixels
- Active pixels: 1392 x 1040
- Color (CB-140 GE): Raw Bayer output, host-based interpolation
- Read-out modes
Full: 1392 (h) x 1040 (v) 16 fps
1/2 partial scan: 1392 (h) x 520(v) 30 fps
1/4 partial scan: 1392 (h) x 260 (v) 30 fps
1/8 partial scan: 1392 (h) x 130 (v) 30 fps
2/3 partial scan: 1392 (h) x 694 (v) 30 fps
Vertical binning: 1392 (h) x 520 (v) 30 fps*
Region-of-interest (ROI): User definable. Memory read-out
*NOTE: CM-140 GE only - Sensitivity (CM-140 GE): 0.3 Lux (On sensor, max. gain, shutter off, 50% video)
- S/N ratio: >50dB (0dB gain)
- Video output: GigE Vision, 8-bit or 10-bit
- Auto-iris lens video output: 0.7 Vp-p, enabled by internal switch
- Gain: Manual, -3 to +24 dB
- Synchronization: External hardware trigger via GPIO Software trigger via GigE Vision
- Operating Temperature: -5°C to +45°C
- Power: 12V DC +/-10%. 3.5W
- Lens mount: C-mount
- Dimensions (H x W x L): 29 x 44 x 75 mm
- Weight: 125 g
Quick Info for the JAI CM-140GE-UV
Camera Category: | Area Scan |
---|---|
Camera Series: | C |
FPS: | 16 |
Interface: | GigE |
Manufacturer: | JAI |
Resolutions: | 1.4 MP |
Scanning Mode: | Progressive Scan |
Signal System: | UV |
Technology: | GigE Cameras |
Quick Info for the JAI CM-140MCL-UV
Camera Category: | Area Scan |
---|---|
Camera Series: | C |
FPS: | 16 |
Interface: | Camera Link |
Manufacturer: | JAI |
Resolutions: | 1.4 MP |
Scanning Mode: | Progressive Scan |
Signal System: | UV |
Technology: | Camera Link Cameras |
Quick Info for the JAI CM-140PMCL-UV
Camera Category: | Area Scan |
---|---|
Camera Series: | C |
FPS: | 16 |
Interface: | Camera Link |
Manufacturer: | JAI |
Resolutions: | 1.4 MP |
Scanning Mode: | Progressive Scan |
Signal System: | UV |
Technology: | Camera Link Cameras |
