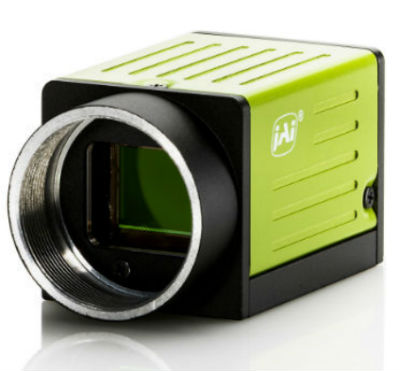

JAI GO-5000C Camera

Jai's Go Series 5-megapixel CMOS Global Shutter GigE Vision Color Camera

FEATURES:

• Large format 5 MP CMOS imager (global shutter)
• Up to 22 fps at full resolution
• 5.0 μm square pixels

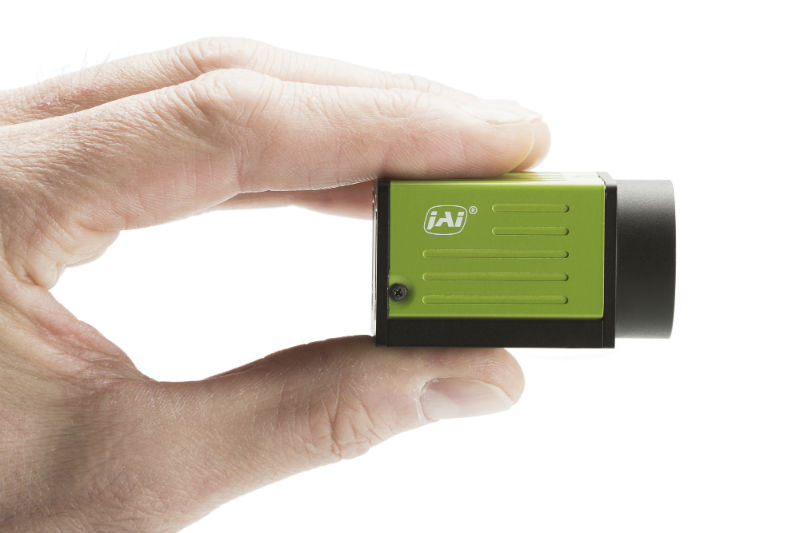

• Small size (29 x 29 x 41.5 mm, excluding lens mount)
• 8/10/12-bit output in choice of monochrome or raw Bayer color models
• 60 dB linear dynamic range with built-in HDR modes up to 100 dB
• Analog and digital gain control for less quantized noise in low-light situations
• Exposure control from 10 μs (1/100,000) to 8 seconds in 1 μs steps
• 2X and 4X binning for increased sensitivity
• Single and multi-ROI modes for flexible windowing and use of 2/3” or smaller optics
• Automatic Level Control (ALC) for dynamic lighting conditions
• C-mount lens mount

TECHNICAL INFORMATION:

• Sensor: 1": CMOS global shutter
• Pixel Clock: 48 MHz
• Frame rate, full frame: 107 frames/sec. (8-bit, 8-tap, full CL)
• Active area: 12.8 mm (h) x 10.24 mm (v), 16.39 mm diagonal
• Cell size: 5.0 μm (h) x 5.0 μm (v)
• Active pixels: 2560 (h) x 2048 (v)
• Read-out modes
  Full: 2560 (h) x 2048 (v) up to 107 fps
  ROI (mono): Any start line, any height in 1 line steps, with X offset and width in 8 pixel steps
  ROI (RGB): Any start line, any height, in 2L steps with X offset and width in 8 pixel steps
  Binning: 1/2/4 (h) x 1/2/4 (v) (monochrome only)
• Traditional SNR: >53 dB (0 dB gain, green, non-linear)
• Video signal output: 8/10/12-bit Bayer
• Gain (digital): Manual/automatic 0 dB to +24 dB
• Gain (analog): x1, x2, x4 (mono or individual Bayer channels)
• White balance (GO-5000C: Manual, one-push auto, or continuous (3000K to 9000K)
• Gamma: 0.45, 0.6, 1.0 or 32-point LUT
• Synchronization: Internal
• Trigger input: TTL, CL, Pulse Generator, Software, NAND0, NAND1
• Trigger modes: EPS, Trigger Width, Timed RCT (with ALC)
• High Dynamic Range mode (HDR): 4 user-selectable knee slopes – 70/80/90/100 dB (monochrome only)
• Operating temperature: -5^oC to +45^oC
• Storage temperature: -25^oC to +60^oC
• Humidity: 20 - 80% non-condensing
• Vibration: 10 G (20Hz to 200Hz XYZ, 20 mins.)
• Shock: 80 G
• Lens mount: C-mount
• Dimensions (H x W x L): 29 mm x 29 mm x 41.5 mm (excluding lens mount)
• Weight: 46 g
