JAI GOX-12401M-PGE Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the JAI GOX-12401M-PGE

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

The GOX-12401M-PGE is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. It weighs only 62 grams and delivers 12.3-megapixel monochrome output at up to 9 fps over a GigE Vision interface.

Download Product PDF:


  • Product Line: Go-X Series
  • Type: Area Scan
  • Color / Mono: Mono
  • Light Spectrum: Visible
  • Resolution: 12.3 MP
  • Resolution WxH: 4096 x 3000 px
  • Frame rate / Line rate: 9 fps
  • ROI: Yes
  • Interface: GigE Vision 1-Cable (PoE)
  • Sensors: 1XCMOS
  • Sensor Name: IMX267
  • Optical Format: 1.1 inch
  • Cell Size WxH: 3.45 x 3.45 µm
  • Shutter type: Global shutter
  • Sensor Diagonal: 17.5 mm
  • Active Sensor Dimensions WxH: 14.2 x 10.4 mm
  • Camera Dimensions HxWxL: 29 x 29 x 51.5 mm
  • Weight: 62 g
  • Video Output: 8/10/12-bit
  • Lens Mount: C-mount
  • Power Consumption: 3.99 Watt
  • Operating Temperature (ambient): -5

Request a Quote

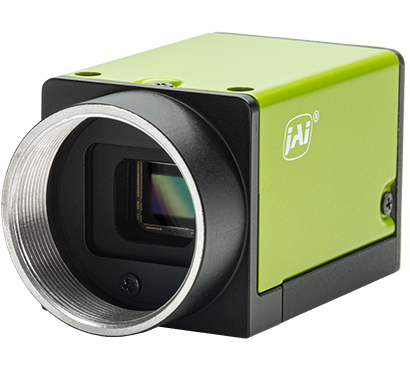

Product image of JAI GOX-12401M-PGE
Product Photos

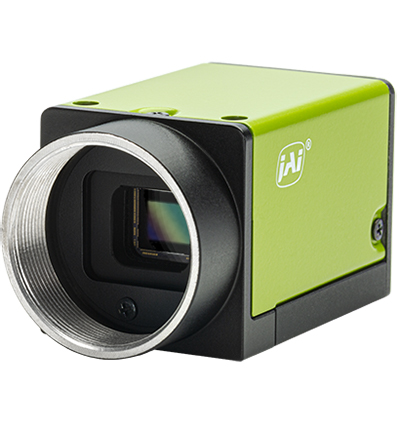

Product image of  JAI GOX-12401M-PGE

Quick Info for the JAI GOX-12401M-PGE

Camera Category: Area Scan
Camera Series: Go-X Series
FPS: 9
Interface: GigE Vision
Manufacturer: JAI
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Monochrome
