JAI SP-12401-PGE Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the JAI SP-12401-PGE

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • SP-12401C-PGE

  • SP-12401M-PGE

Spark Series SP-12401C-PGE 12.4-megapixel area scan camera

The SP-12401C-PGE provides 12-megapixel color resolution at up to 9.3 fps over a standard GigE Vision interface. Featuring the Sony Pregius IMX304 CMOS imager, it delivers outstanding low-noise image quality suitable for a wide range of high resolution machine vision applications.

Spectral Response

Download Product PDF:

TECHNICAL INFORMATION:

  • High resolution 12-megapixel CMOS imager (global shutter)
  • 9.3 fps at full resolution
  • 3.45 μm square pixels
  • User selectable ROI and multi-ROI functions
  • Horizontal and vertical binning (monochrome model) for increased sensitivity
  • Color model provides raw Bayer output or 5x5 in-camera color interpolation
  • Edge enhancement function
  • Color enhancer and RGB/HSI/XYZ color space conversion functions on color model
  • Excellent shock and vibration resistance
  • 8/10/12-bit* output over GenICam-compliant GigE Vision 2.0 interface
  • C-mount lens mount

Request a Quote

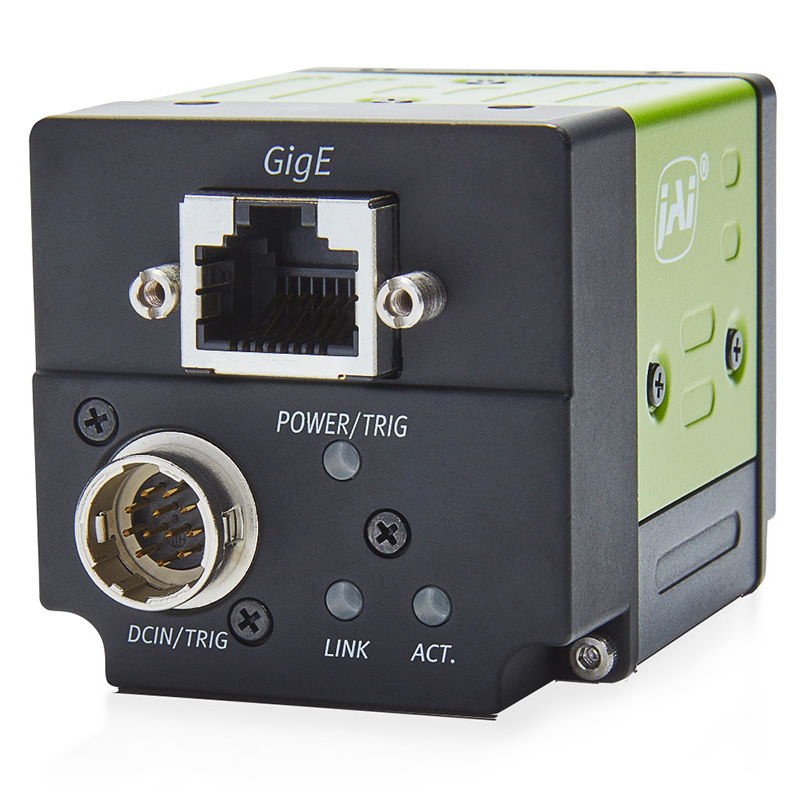

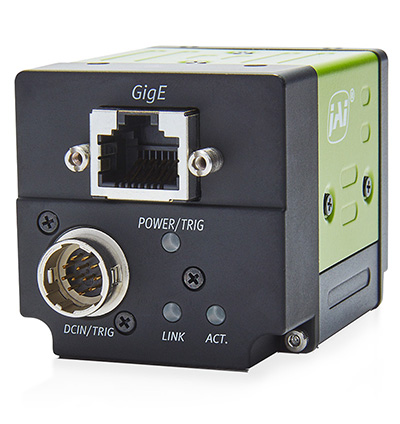

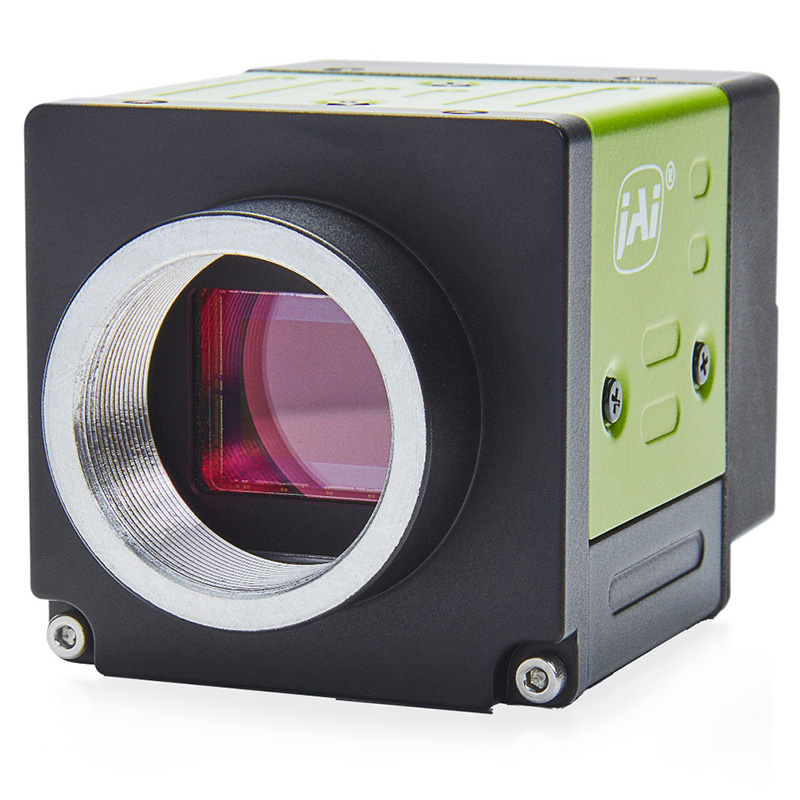

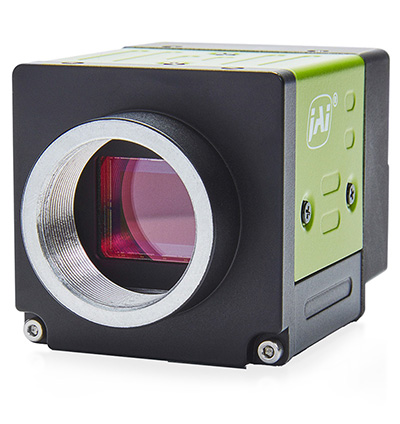

Product image of JAI SP-12401-PGE
Product image of JAI SP-12401-PGE
Product Photos
Product image of  JAI SP-12401-PGE Product image of  JAI SP-12401-PGE

Quick Info for the JAI SP-12401C-PGE

Camera Category: Area Scan
Camera Series: Spark
FPS: 9
Interface: GigE
Manufacturer: JAI
Resolutions: 12.4 MP
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the JAI SP-12401M-PGE

Camera Category: Area Scan
Camera Series: Spark
FPS: 9
Interface: GigE
Manufacturer: JAI
Resolutions: 12.4 MP
Scanning Mode: Area Scan
Signal System: Monochrome
