SP-20000-USB provides high performance with direct USB connection
The SP-20000M-USB and SP-20000C-USB are versions of JAI's high performance Spark 20-megapixel CMOS camera providing a direct connection to PCs via a USB3 Vision interface.
Built around the CMOSIS CMV20000 imager, these Spark Series cameras offer full frame resolution of 5120 x 3840 pixels at a up to 16 frames per second. This combination of speed and resolution makes them ideal for examining flat panel displays, printed circuit boards, and many other applications where detailed inspections are required across a wide area.
In addition, the Spark SP-20000 cameras are well-suited to persistent surveillance, border security, aerial mapping, and other outdoor applications, thanks to such features as automatic level control (ALC) linking shutter and gain for best exposures under changing light conditions; and an optional high dynamic range mode.
The monochrome model (SP-20000M-USB) offers horizontal and vertical binning plus excellent NIR response while the color model (SP-20000C-USB) provides raw Bayer output for host-based interpolation.
Both monochrome and color models leverage CMOSIS' 8-transistor (8T) pixel architecture to implement true correlated double sampling (CDS) for outstanding image quality with the highest degree of pixel uniformity. An industry-leading 1:50000 parasitic light rejection ratio minimizes global shutter leakage for clean images with sharp contrast.
A high-speed USB 3.0 interface supports the USB3 Vision standard.

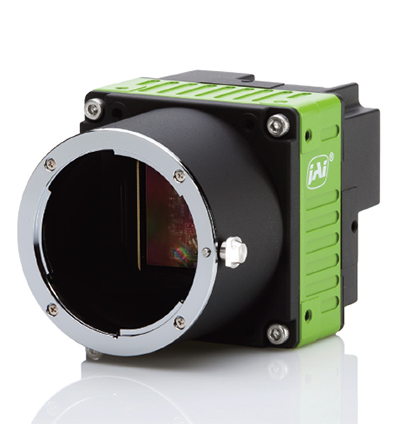

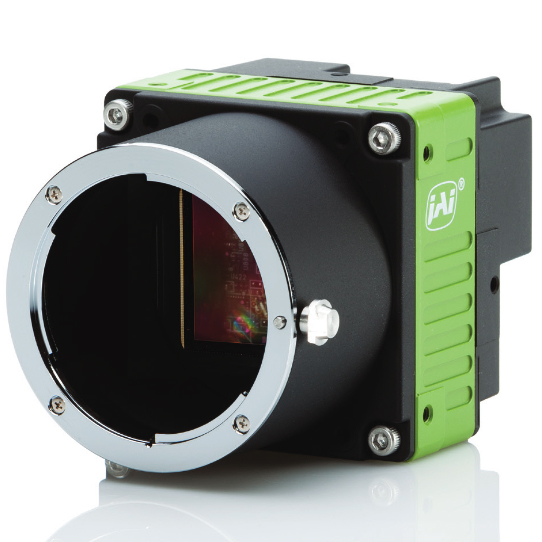

Uses F-mount lenses.
Dimensions (HxWxL): 62 x 62 x 84.5 mm
Note: these cameras are also available with Power-over-Mini-Camera Link (PMCL) or CoaXPress interfaces.
Download Product PDF:
- Large 41mm diagonal CMOS imager with global shutter
- 16 fps at full 20-megapixel resolution (5120 x 3840)
- 6.4 µm square pixels provide excellent sensitivity
- Imager includes correlated double sampling (CDS) function for improved uniformity
- In-camera CMOS pattern correction
- Flat-field and pixel blemish correction
- 8/10/12-bit USB3 Vision output

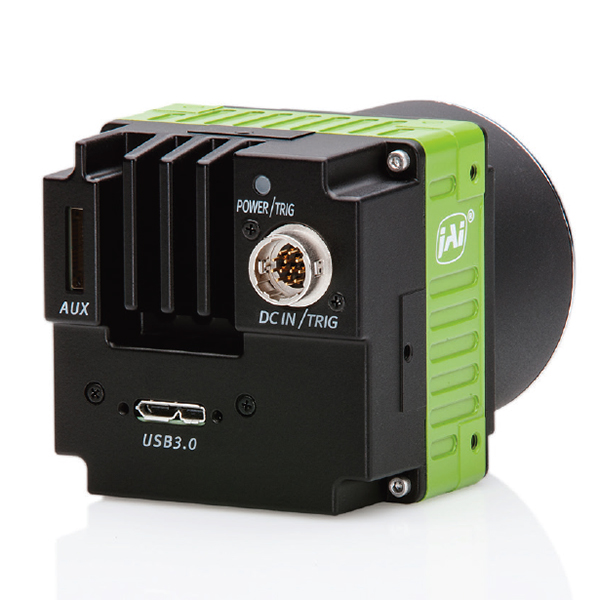

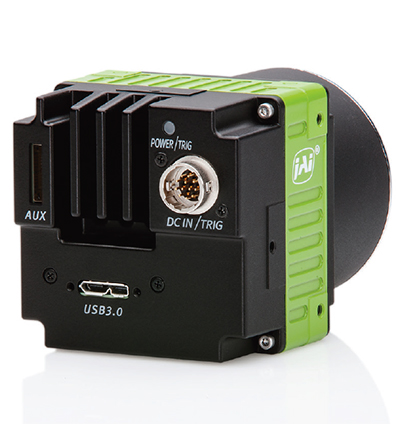

- Accepts power via 12-pin connector
- F-mount lens mount
- Automatic Level Control (ALC) for dynamic lighting conditions
