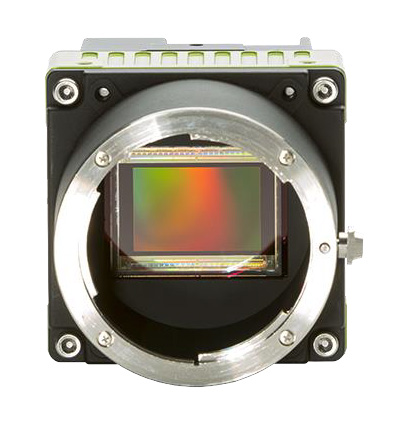

JAI SP-45000-CXP4 Camera
Get a Quote for the JAI SP-45000-CXP4
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
SP-45000C-CXP4
SP-45000M-CXP4
The world’s first 45-megapixel camera based on the XGS-45000 CMOS sensor from OnSemi. This new JAI Spark SP-45000- CXP4 camera delivers as much as 52.19 frames per second in full 44.7 MP resolution over a CoaXPress 4-connector interface, making this the fastest 45-megapixel camera on the market at the moment. But not only is it fast, it also delivers an outstanding image quality featuring a dark noise value of only 4.5e- and a dynamic range of 67dB, that can be increased to 73dB, by using the 14-bit High Dynamic Range (HDR) imaging function, based on a special dual analog gain exposure principle.
Download Product PDF:
TECHNICAL INFORMATION:
- High resolution 44.7 megapixel CMOS image sensor (global shutter)
- Up to 52.19 fps at full resolution (8192 x 5460)
- Capable of 65+ fps at 8K resolution (8192 x 4320)
- Super 35mm format (31.5 mm diagonal) with 3.2 μm square pixels
- Built-in functions for HDR (High Dynamic Range), frame integration and more
- Horizontal / vertical image flip function
- Lens control function utilizing Birger Mount and RS-232C lens control commands
- Excellent shock and vibration resistance
- 8/10/12/14-bit* output over 4-channel, GenICam-compliant CoaXPress interface
- F-mount or M42 lens mount options
* Not all processing functions supported with 12-bit output. 14-bit output for HDR and frame integration modes only.
Quick Info for the JAI SP-45000C-CXP4
Camera Category: | Area Scan |
---|---|
Camera Series: | Spark |
FPS: | 52.19 |
Interface: | CoaXPress |
Manufacturer: | JAI |
Resolutions: | 44.7 MP |
Scanning Mode: | Area Scan |
Signal System: | Color |
Quick Info for the JAI SP-45000M-CXP4
Camera Category: | Area Scan |
---|---|
Camera Series: | Spark |
FPS: | 52.19 |
Interface: | CoaXPress |
Manufacturer: | JAI |
Resolutions: | 44.7 MP |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
