JAI SP-5000-GE2 Camera

Spark SP-5000M-GE2 and SP-5000C-GE2 provide exceptional combo of resolution, speed, and image quality

The Spark SP-5000M-GE2 and SP-5000C-GE2 are high performance 5-megapixel CMOS cameras providing an exceptional combination of resolution, speed, and image quality. These models enable users to leverage GigE Vision's "grabber-less" technology for direct connection to PCs or other image processing hardware.

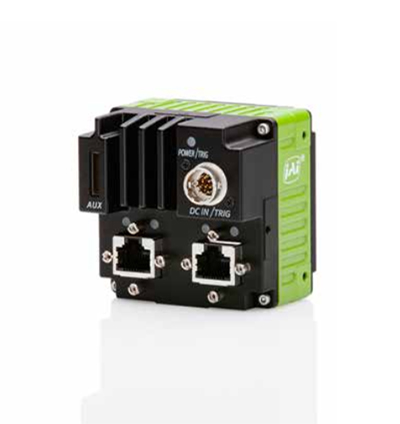

The SP-5000M-GE2 and SP-5000C-GE2 feature two standard RJ45 ports and utilize GigE Vision’s Link Aggregate Group (LAG) method to deliver image information at up to two gigabits per second.

Utilizing a unique 2560 x 2048 pixel CMOS imager available exclusively from JAI, the cameras output full resolution 8-bit monochrome or raw Bayer images at 44 fps. 10-bit and 12-bit output is also supported.

The color model  (SP-5000C-GE2) also features a built-in, user-selectable color interpolation function that can provide 24-bit RGB output, as well as YUV 411, YUV 422, or YUV 444. Frame rates for these modes range from 29 fps to 14.6 fps.

Like all the SP-5000 cameras, these GigE Vision models feature a mixture of on-chip and in-camera capabilities enabling them to deliver image quality well beyond what is typical for high-speed CMOS cameras.

For example, a combination of analog and digital gain controls help to reduce the amount of quantized noise in low-light images compared to conventional CMOS cameras with digital gain functions alone. On the color model, an on-chip 4-channel analog gain control is provided for better white balancing and color shading correction with reduced noise.

Also included is JAI’s Auto Level Control (ALC) that combines auto gain, auto shutter, and auto iris capabilities in an integrated function to let users optimize their auto exposure control for lowest noise, fastest shutter, or other priorities.

The cameras are equipped with an auxiliary lens control circuit that supports P-iris control, as well as  programmable 3-axis control of motorized zoom lenses or other analog accessories.

Single and multi-ROI capabilities, available for both monochrome and color models, provide added flexibility for utilizing both the high frame rate and pixel resolution of the cameras. On monochrome models, 2X binning is supported in horizontal, vertical, or both directions.

Outdoor applications benefit from the cameras’ built-in high dynamic range mode (monochrome models), the previously described ALC capability, and an extended temperature rating, which enables the cameras to operate in conditions ranging from -45°C to +70°C.

Uses C-mount lenses.

Dimensions (HxWxL): 62 x 62 x 55.5 mm

Note: these cameras can also be ordered with Mini Camera Link and USB3 Vision interfaces, as well as 2-channel or 4-channel CoaXPress interfaces. See separate web pages for information about these models or contact JAI.

*HDR mode available on monochrome models only

Download Product PDF:

• JAI SP-5000-GE2 Camera

TECHNICAL INFORMATION:

• 1" CMOS imager with global shutter
• Up to 44 fps at full 5-megapixel resolution (2560 x 2048)
• 5.0 µm square pixels
• 60 dB linear dynamic range with 100 dB piece-wise HDR mode*
• In-camera CMOS pattern correction
• On-chip 4-channel analog gain control in color model
• 8/10/12-bit dual GigE Vision interface with Link Aggregate Group (LAG) support
• In-camera interpolation (RGB or YUV) on color model
• C-mount lens mount (CX models come with adjustable C-mount lens mount)
• Automatic Level Control (ALC) for dynamic lighting conditions
• Programmable 3-axis control for motorized lenses, pan/tilt heads, and other analog accessories
