JAI SP-5000C Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the JAI SP-5000C

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Email: *

Available Variations:

  • SP-5000C

  • SP-5000C-CXP4

Jai's Spark Series 5-megapixel CMOS Global Shutter Color Camera


  •  Large format 5 MP CMOS imager (global shutter)
  • Up to 209 fps at full resolution over 2x CoaXPress interface
  • 5.0 μm square pixels in a 5:4 aspect ratio
  • 60 dB linear dynamic range with 100 dB piece-wise HDR mode
  • Auto-scaling A/D front-end for improved dynamic range in low light applications
  • On-chip 4-channel analog gain for individual R, G1, G2, + B control
  • 2X and 4X binning for increased sensitivity (monochrome only)
  • ROI and decimation modes for flexible readout, windowing, or increasing frame rate
    – 419 fps at 1280 x 1024 pixels, 888 fps at 640 x 480 pixels
  • Monochrome or color models with raw Bayer or in-camera RGB/YUV interpolation
  • Accepts power over CoaXPress or 12-pin connector for maximum application flexibility
  • C-mount lens mount
  • Automatic Level Control (ALC) for dynamic lighting conditions
  • Programmable P-iris lens control or optional 3-axis DC-iris control for operation of motorized lenses, pan/tilt heads, or other analog accessories

Download Product PDF:


  • Sensor: 1" CMOS global shutter
  • Pixel Clock: 72 MHz
  • Frame rate, full frame: 209 frames/sec.
  • Active area: 12.8 mm (h) x 10.2 mm (v)
  • Cell size: 5.0 μm (h) x 5.0 μm (v)
  • Active pixels: 2560 (h) x 2048 (v)
  • Horizontal output frequency: 463.36 kHz
  • Sensitivity: X.X Lux (shutter off, max. gain, ƒ1.4, 50% green)
  • S/N ratio: >53 dB. (0 dB gain, green)
  • Video signal output: 8/10/12-bit Bayer
  • Auto-iris lens video output: 0.7Vp-p, with 0.3V horiz. sync
  • Gain: Manual/automatic 0 dB to +24 dB
  • White balance: Manual, one-push auto, or continuous (3000K to 9000K)
  • Gamma: 0.45-1.0 (16 steps) or 256-point LUT
  • Synchronization: Internal
  • Inputs/Outputs: GPIO in/out through Hirose 12-pin connector
  • Power: 12V to 24V DC ± 10%. 5.9W typical(full frame @ 12V)
  • Lens mount: C-mount
  • Dimensions (H x W x L), C-mount: 62 mm x 62 mm x 55.5 mm
  • Weight: 260 g

Request a Quote

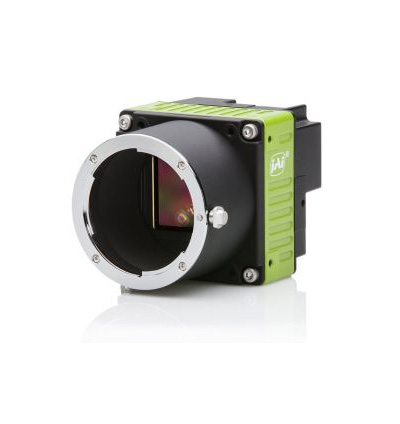

Product image of JAI SP-5000C
Product Photos
Product image of  JAI SP-5000C

Quick Info for the JAI SP-5000C

Camera Category: -
Camera Series: Spark
FPS: 209
Interface: -
Manufacturer: JAI
Resolutions: 5.2 MP
Scanning Mode: -
Signal System: Color

Quick Info for the JAI SP-5000C-CXP4

Camera Category: Progressive Scan
Camera Series: Spark
FPS: 253
Interface: CoaXPress
Manufacturer: JAI
Resolutions: 5 MP
Scanning Mode: Line Scan
Signal System: Color
Technology: Coaxpress Cameras
