JAI LT-200CL Camera

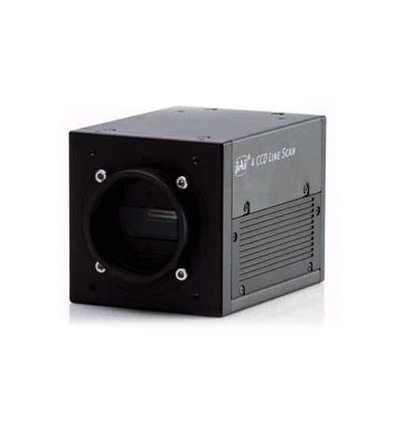

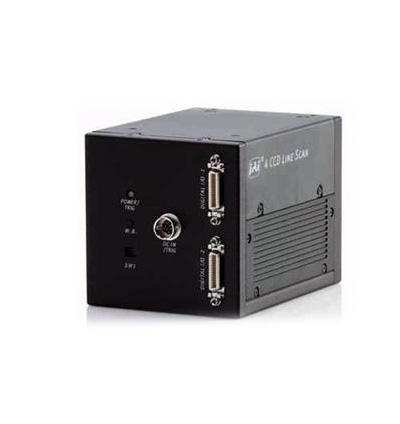

JAI LT-200CL - a new prism-based color line scan camera

JAI has launched the LT-200CL - a new prism-based color line scan camera equipped with 3 x 2048 pixels custom-designed CMOS sensors, capable of running at scan rates up to 30383 lines/second with full pixel readout.

The camera features a light beam splitter prism with 3 precisely aligned CMOS sensors that capture the red, green and blue spectral bands in 3 separate channels simultaneously through the same optical path and with co-site sampling accuracy.

The camera accepts M52 or F-mount lens.

FEATURES:

• 3 CMOS line scan camera with Camera Link output
• Dichroic RGB beam splitter prism with 3 sensors
• 3 sensors with 2048 pixels, 14.0 μm x 14.0 μm
• Low-noise operation (S/N: 57 dB) providing superior image quality
• 28.672 mm sensor scan width
• 3 x 8 bits or 3 x 10 bits output through Camera Link interface
• Line rate up to 30383 lines per second at 80 MHz pixel clock
• One-push auto white balance
• Flat field correction and color shading correction
• Knee and binning functions for extended dynamic range and sensivity
• Sub-sampling and windowing readout
• Set-up and installation aid with built-in test generator
• Available with M52 mount (standard) or Nikon F-mount
• Short ASCII commands for set-up via RS 232C or Camera Link

Download Product PDF:

• JAI LT-200CL Camera

TECHNICAL INFORMATION:

• Scanning system: Line sensor with internal clock
• Pixel clock: 80.00 MHz
• Sensor: 3 CMOS line sensors, mounted on RGB beam splitter prism
• Sensor scanning width: 28.672 mm
• Cell size: 14 (h) x 14 (v) μm
• Active pixels: 3 x 2048 (h), 3 x 1024 (h) with 2:1 binning
• Sensitivity (sensor): Radiometric: 27nJ/cm2
• Sensitivity (standard): 2800 Lux (7800K, gain = low, shutter = OFF, G = 0 dB, F2.8, 100% video)
• S/N ratio: 57 dB on green with gain = 0 dB
• Video output: 24 bit (3 x 8) in CL base configuration, 30 bit (3 x 10) in CL medium configuration
• Synchronization: Internal X-tal or external trigger
• Trigger modes: No-shutter, shutter-select and pulse width control
• Lens mount: M52-mount (Standard), Nikon F-mount. (Factory option)
• Sensor alignment: Better than ±0.1 mm
• Operating temp/humidity: -5°C to +45°C, 20 – 80% non-condensing
• Storage temp./humidity: -25°C to +60°C, 20 – 80% non-condensing
• Shock: 50G
• Power: 12V DC -10% to 24V DC + 10%
• Dimensions: 90 mm (W) x 90 mm (H) x 90 mm (D)
• Weight: 830g
