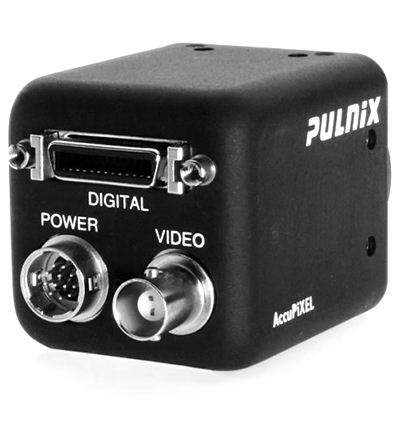

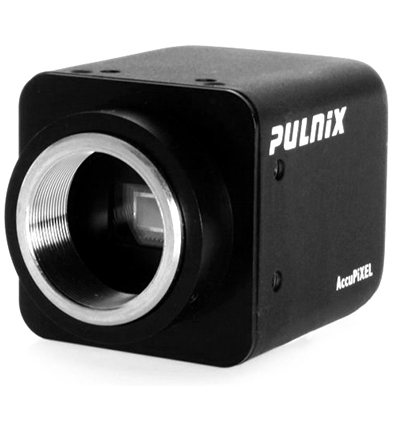

JAI TM-9730CL Camera

The TM-9730CL is a compact monochrome Camera Link camera

The TM-9730CL is a monochrome progressive scan, interline-transfer (KAI-0373) Camera Link camera, inside a compact housing, designed for demanding military or industrial applications. A modular concept is utilized to allow the camera to be configured to meet specific design requirements.

The camera undergoes extended temperature testing, as well as extended shock & vibration testing. Some of the optional configurations are a conformal coat, imager blemish compensation, and a 2:1 digital zoom. See the data sheet for more specific information.

Dimensions (H x W x L): 44.5 x 44.5 x 88.7 mm

FEATURES:

• 2/3" CCD with 768 (H) x 484 (V) resolution
• Large 11 x 13 µm pixels for high dynamic range and NIR sensitivity
• Small 44.5 x 44.5mm housing (standard configuration)
• GUI or serial commands for digital control of all camera functions
• Built-in look-up table (LUT) provides max. image contrast & dynamic range
• Extended temperature, shock, and vibration testing

Download Product PDF:

• JAI TM-9730CL Camera

TECHNICAL INFORMATION:

• Sensor: 2/3” progressive scan IT CCD
• Active area: 8.9mm x 6.6mm
• Active pixels: 768 (H) x 484 (V)
• Cell size: 11.6 µm x 13.6 µm
• Readout Modes:
  Digital: 768 (H) x 484 (V)
  Analog: 570 TV lines (H) x 484 TV lines (V)
• Synchronization:
  Internal/External auto switch
  VD= 30 Hz
  HD= 15.734 kHz ± 5%
• Pixel clock: 14.318 MHz
• S/N ratio: >54 dB
• Sensitivity:
  Mono: 0.09 lux f=1.4 (no shutter) @ 30 fps,
  Color: 0.55 lux f=1.4 (no shutter) @ 30 fps
• Video output:
  Analog: 1.0 Vp-p, 75 O
  Digital: 8-bit Camera Link
• Color (TMC-9730CL only): Raw Bayer output for host-based interpolation
• Gamma: Programmable LUT (Gamma 1.0 std)
• Shutter speed: 1/30 to 1/31,500 in 10 steps
• Lens mount: C-mount
• Power: 12V DC ± 10%, 330 mA (typical at 25° C)
• Operating temperature: -10° C to 50° C
• Vibration: 7 Grms (10 Hz to 2000 Hz) Random
• Shock: 70 G, 11 ms, half-sine
• Dimensions (H x W x L): 44.5 mm x 44.5 mm x 68 mm
• Weight: 171 g (without tripod)
