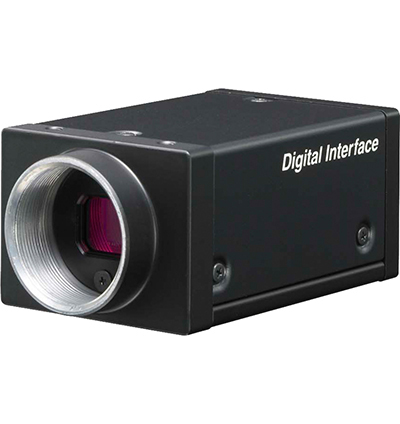

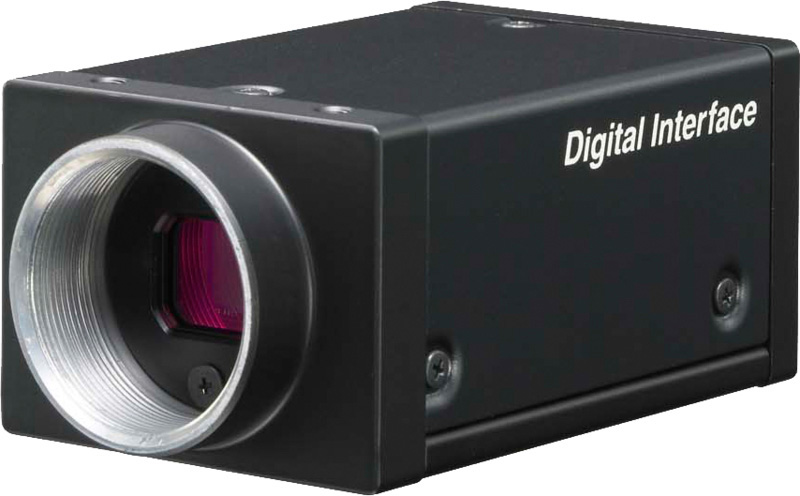

Sony XCG-5005 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Sony XCG-5005
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
XCG-5005CR
XCG-5005E
Sony is expanding its high-performance XCG GigE camera line-up with the addition of of the new high speed, raw color model – the XCG-5005CR
Featuring Full Progressive Scan, Complementary Color Mosaic Color Filter, and High Sensitivity, the new XCG-5005CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications.
2/3" Raw Color 5MP GigE Camera
FEATURES:
- 2/3 type Progressive Scan IT CCD
- 8/10/12 bits/pixel
- GigE Vision Compliant (Ver 1.20)
- 2448 x 2048 pixels
- 15 fps
- High Sensitivity - 2000 lux @ F8 (o dB)
- Compact & Lightweight: 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches), 145g (less than 5 3/4 oz)
- Partial Scanning & Binning Functions
- High Shock and Vibration Resistance
Download Product PDF:
TECHNICAL INFORMATION:
- Cell Size: 3.45 x 3.45 µm
- Effective Pixels: 2448 x 2048
- Frame Rate: 15 fps
- Gain:
Manual 0 to + 18dB
Auto gain - Image Device: 2/3-type progressive scan IT CCD
- Image Device Value: Complementary color mosaic
- Lens Mount: C-mount
- Output Image Size: 2448 x 2048 pixels
- Resolution: Resolution depth: 8/10/12 bits/pixel
- Sensitivity: F5.6 at 400 lx (0 dB)
- Trigger Shutter: 2-1/100,000;Mode:Pulse-edge detect,Pulse-width detect,Special mode(Bulk trigger/Sequential trigger)
- Dimensions (W x H x D): 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67 mm)
- Operating Humidity: 20 to 80% (no condensation)
- Operating Temperature: -10 to 50° C
- Power Consumption: 4.3 W
- Power Requirements: DC +12V (+10.5 to +15.0V)
- Shock Resistance: 70 G
- Storage Humidity: 20 to 95% (no condensation)
- Storage Temperature: -22 to 140° F (30 to 60° C)
- Vibration Resistance: 10 G (20 Hz to 200 Hz)
- Weight: 145g
Quick Info for the Sony XCG-5005CR
Camera Category: | Area Scan |
---|---|
Camera Series: | Machine Vision |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Sony |
Resolutions: | 5 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Sony XCG-5005E
Camera Category: | Area Scan |
---|---|
Camera Series: | Machine Vision |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Sony |
Resolutions: | 5 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Monochrome |
Technology: | GigE Cameras |
