Active Silicon AS-FBD-4XUSB3-5-104-2PE2 Frame Grabber

Need Help Finding the Best Frame Grabber for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Active Silicon AS-FBD-4XUSB3-5-104-2PE2 Frame Grabber

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

  • 4 x USB 3.0 compliant downstream ports.
  • Dual full USB 3.0 bandwidth architecture with each channel split into 2 x USB 3.0 ports.
  • Based on proven Renesas™ USB 3.0 Host Controller.
  • Compliant with USB 3.0 specification Rev.1.0 and Intel xHCI specification Rev. 1.0.
  • Support for USB3 Vision cameras.
  • Dedicated USB power supply allows for long cables.
  • Rugged PCIe/104 form-factor.
  • Universal operation: Type 1 or Type 2 hosts.
  • Supports stack up or stack down configurations.
  • Windows and Linux support.

TECHNICAL INFORMATION:

Quick Info for the Active Silicon AS-FBD-4XUSB3-5-104-2PE2 Frame Grabber
Buffer: N/A
Camera Inputs: up to 4 USB 3.0 Ports
Host Bus: PCIe Gen2 x1
Interface : USB 3.0
Manufacturer: Active Silicon
Pixel Clock: N/A

Request a Quote

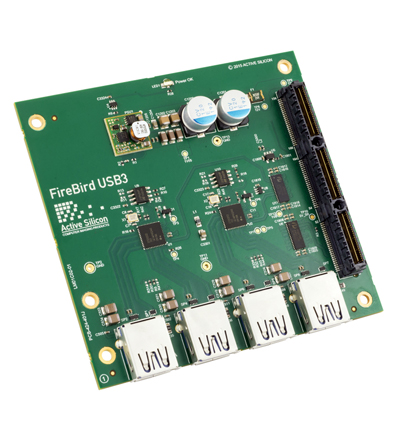

Product image of Active Silicon AS-FBD-4XUSB3-5-104-2PE2
Product Photos
Product image of Active Silicon AS-FBD-4XUSB3-5-104-2PE2
