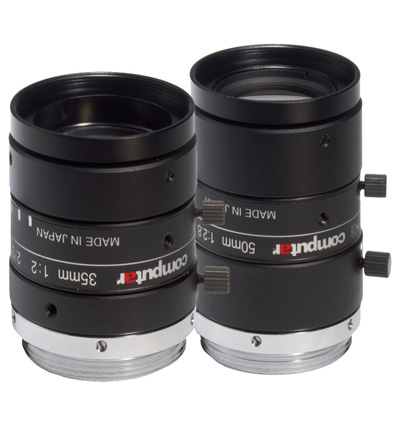

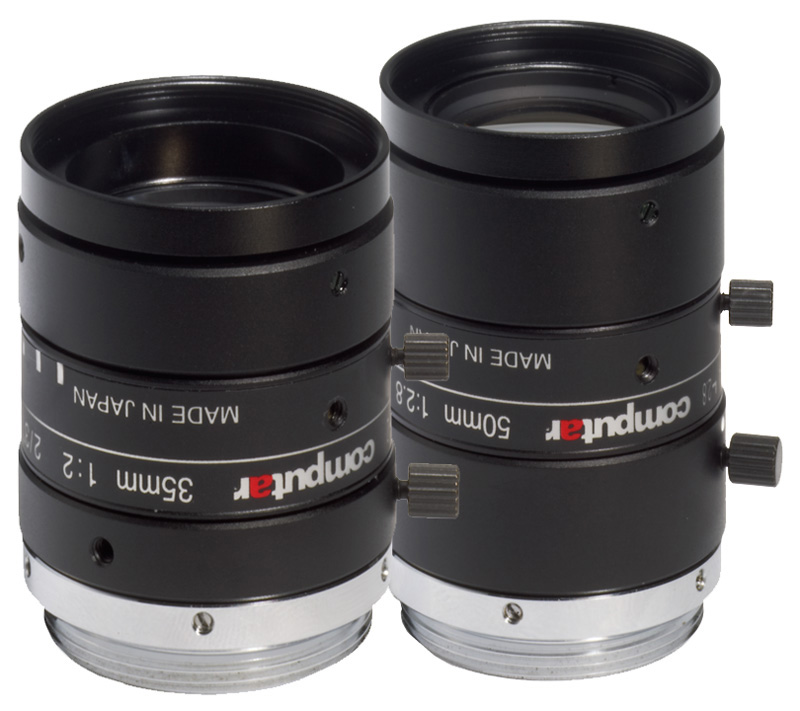

Dalsa Genie NanoXL M5100 C Mount Lens

Compact GigE Vision camera with very high resolution

The Genie NanoXL-M5100 offers both the On-Semi Python 25K Monochrome version sensor with a resolution of 5120 x 5120. Teledyne DALSA’s “Burst Acquisition” and “Turbo Drive” feature allows for image capture rates of 20 fps in 25 M pixels resolution while maintaining very good image quality. The Genie NanoXL-M5100 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Teledyne DALSA GigE cameras, the Genie NanoXL-M5100 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

• Uses standard PC Ethernet port & hardware
• Supports cable lengths up to 100 m (CAT-5e or CAT-6)
• Simplified set-up with field proven Sapera
• Essential software featuring CamExpert
• Engineered to accommodate industrial environment with a Ruggedize, screw mount, RJ-45 connector
• Higher frame rates achievable in partial scan mode
• Global electronic shutter with exposure Control
• Multi-Exposure Feature
• Multi-ROI Feature

TYPICAL APPLICATIONS:

• Electronics manufacturing inspection
• Industrial metrology
• Intelligent traffic systems

Download Product PDF:

• Dalsa Genie NanoXL M5100

TECHNICAL INFORMATION:

• Active Resolution: 5120 x 5120
• Acquisition Frame Rate: 20 fps (internal BurstMode)
• Data Output Transfer: Gigabit Ethernet (1000 Mbit/s) only
• Pixel Size: 4.5 μm x 4.5 μm
• Data Format: 8 Bits output
• Exposure Control: Automatic, Programmable, or via External Trigger
• Dynamic Range: 55.2 dB
• Gain Control :Automatic, Manual up to 8x analog gain
• I/O Ports: 2 opto-isolated input, 3 opto-isolated output
• Image Buffer: 500 MB of On-board memory
• Lens Mount: M42 mount
• Size (L x H x W): 30 mm x 59 mm x 59 mm (without lens adapter or connectors)
