1/3" 4mm f1.2 Monofocal, Manual Iris (CS Mount)

Monofocal manual iris lenses are an economical choice providing fixed focal lengths and a very simple and compact design. CS-Mount, comprised of all glass optics, they come with locking setscrews and a durable metal barrel and mount.

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 4 mm
  • Max. Aperture Ratio: 1:1.2
  • Max. Image Format: 4.8 x 3.6mm (6mm)
  • Operation Range:
    Iris: F1.2 ~ 16C
    Focus: 2m ~Inf.
  • Object Dimension at M.O.D.:
    24.9 x 18.3 cm
  • 1/3" Type Angle of View:
    (D) 76.9o
    (H) 63.9o
    (V) 49.1o
  • Operating Temperature: -20o - + 50oC
  • Effective Lens Aperture:
    Front: 15.5mm
    Rear: 8.5mm
  • Back Focal Length: 17.7mm
  • Flange Back Length: 12.5mm
  • Mount: CS-Mount
  • Filter Size: M30.5 x 0.5
  • Dimensions: 34.5 x 33.0mm
  • Weight: 36g

Request a Quote

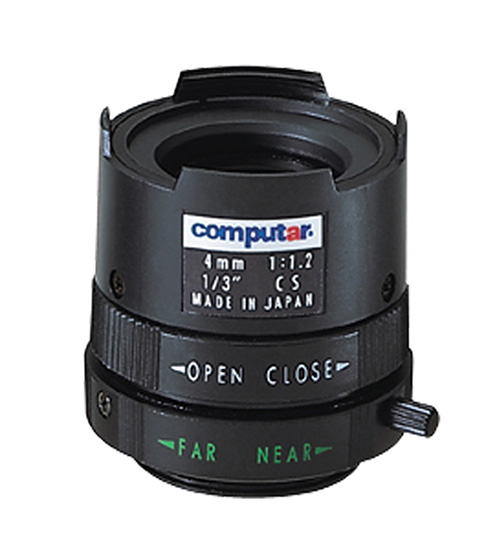

Product image of Computar T0412FICS-3
Product Photos

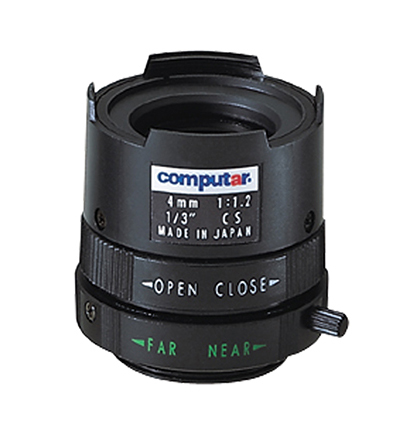

Product image of Computar T0412FICS-3
Quick Info for the Computar T0412FICS-3 CS Mount Lens
Aperture: 1.2 ~ 16
Focal Length: 4mm
Format : 1/3
Manufacturer: Computar
Model Type: Fixed Focal
Mount: CS Mount
Product Life Cycle: Mature Product
Resolution : 1.5 MP <
Ruggedized: --
