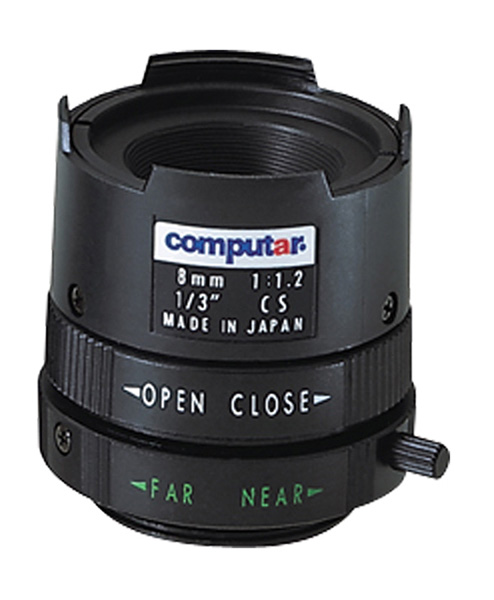

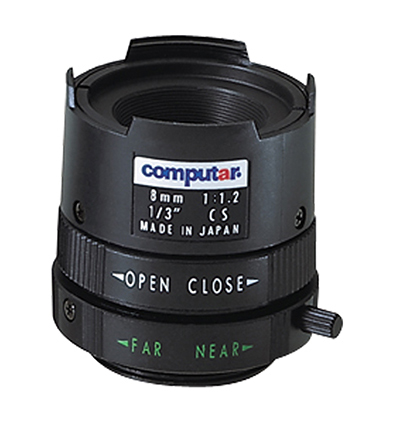

Computar T0812FICS-3 CS Mount Lens
Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Computar T0812FICS-3 CS Mount Lens
Please fill out the form below to request a quote. Fields marked with * are required.
Monofocal manual iris lenses are an economical choice providing fixed focal lengths and a very simple and compact design. CS-Mount, comprised of all glass optics, they come with locking setscrews and a durable metal barrel and mount.
Download Product PDF:
TECHNICAL INFORMATION:
- Focal Length: 8 mm
- Max. Aperture Ratio: 1:1.2
- Max. Image Format: 4.8 x 3.6mm (6mm)
- Operation Range:
Iris: F1.2 ~ 16C
Focus: 2m ~Inf. - Object Dimension at M.O.D.:
12.5 x 9.2 cm - 1/3" Type Angle of View:
(D) 43.5o
(H) 34.7o
(V) 25.9o - Operating Temperature: -20o - + 50oC
- Effective Lens Aperture:
Front: 25.0mm
Rear: 8.8mm - Back Focal Length: 8.1mm
- Flange Back Length: 12.5mm
- Mount: CS-Mount
- Filter Size: M30.5 x 0.5
- Dimensions: 34.5 x 33.0mm
- Weight: 37g
