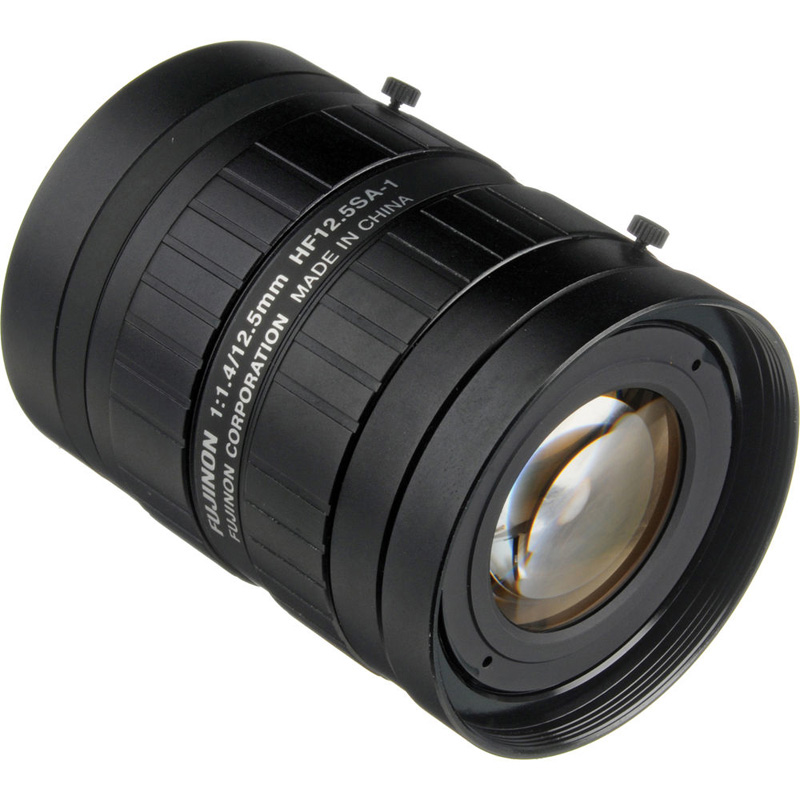

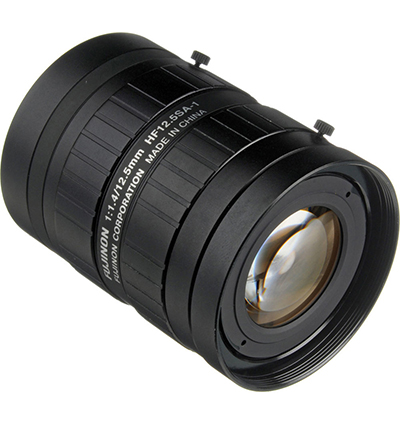

Fujinon HF12.5SA-1 C Mount Lens

• High Resolution design, providing support for up to 5 megapixel camera resolution.
• Rear focusing system provides improved performance in macro photography.
• Wide-aperture (F1.4) design achieves clear images under low light intensity.
• Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Download Product PDF:

• Fujinon HF12.5SA-1

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 12.5
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 16.07
• Exit Pupil Position (From Image Plane) (mm): -101
• Filter Thread (mm): M49 x 0.75
• Mass (g): 295
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  2/3" - 38^o47' x 29^o 35'
  1/2" - 28^o 43' x 21^o 44'
  1/3" - 21^o 44' x 16^o 23'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 83 x 62
  1/2" - 60 x 45
  1/3" - 45 x 34
• Mount: C
