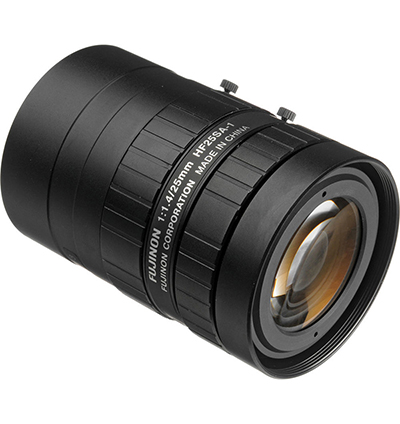

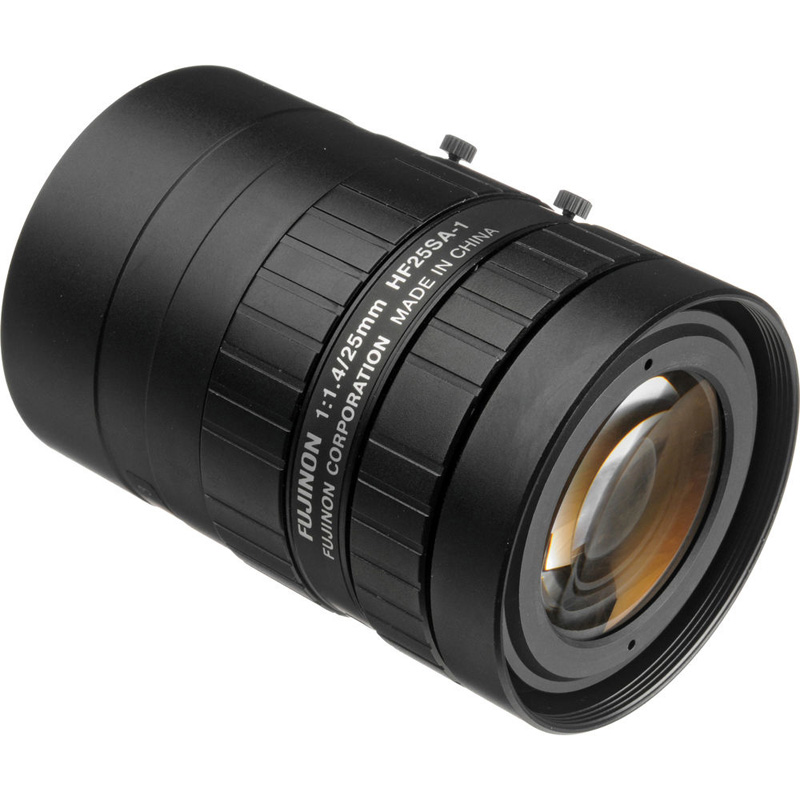

Fujinon HF25SA-1 C Mount Lens

• High Resolution design, providing support for up to 5 megapixel camera resolution.
• Wide-aperture (F1.4) design achieves clear images under low light intensity.
• Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity.
• Low-distortion design achieving accurate image input.
• Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Download Product PDF:

• Fujinon HF25SA-1

TECHNICAL INFORMATION:

• Focus: Manual
• Iris: Manual
• Focal Length (mm): 25
• Iris Range: F1.4 ~ F22
• Back Focal Distance (in air) (mm): 22.32
• Exit Pupil Position (From Image Plane) (mm): -140
• Filter Thread (mm): M49 x 0.75
• Mass (g): 315
• Focusing Range (From Front Of The Lens) (m): ~ 0.1
• Angle of View:
  2/3" - 19°58' x 15°02'
  1/2" - 14°35' x 10°58'
  1/3" - 10°58' x 8°14'
• Object Dimensions at M.O.D. (H x V) (mm):
  2/3" - 44 x 33
  1/2" - 32 x 24
  1/3" - 24 x 18
• Mount: C
