HF50XA-5M, a machine vision lens  is used for product inspections and measurements at production lines. HF50XA-5M, has the focal length of 50mm, and is compatible with a 2/3-inch sensorĀ·3.45 µm pixel pitch* (equivalent to 5 megapixels).

Despite being a telephoto lens, the “HF50XA-5M” achieves the MOD of 200mm to enable close-up shooting with a compact body measuring φ33mm in external diameter. In addition, the “HF50XA-5M” is equipped with anti-vibration and shock-resistant performance, which allows the lens to be used under a variety of conditions, such as installation site subject to large vibrations.

Download Product PDF:


Focal length [mm] 50mm
Aperture range (F no.) F2.4-F16
Angle of view 10.4°×7.8°
Working Distance*1(mm) ∞-200
Operation of focus Manual
Operation of iris Manual
Filter thread [mm] M30.5 × 0.5
Mount C-mount
Compatible sensor size (max.) 2/3-inch
TV distortion [%] -0.10
Dimension [mm] φ33×66.5


Request a Quote

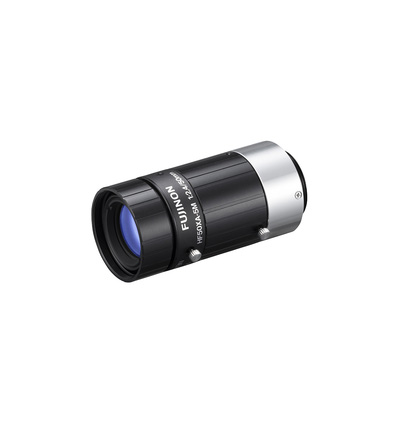

Product image of Fujinon HF50XA-5M
Product Photos
Product image of  Fujinon HF50XA-5M
Quick Info for the Fujinon HF50XA-5M C Mount Lens
Aperture: 2.4 ~ 16
Focal Length: 50mm
Format : 1.1
Manufacturer: Fujinon
Mount: C Mount
Resolution : 5 MP
Ruggedized: --
